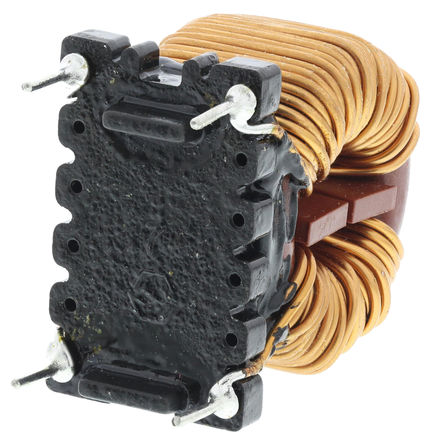

Image is for your reference only,please check specifications for details
- 744825510 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC23314182
-
Category:Inductor Choke
-
Package:Vertical, 4 PC Pin
-
Datasheet:Datasheet 3D Model
-
Description:Common Mode Chokes Dual 10mH 10kHz 5A 55mOhm DCR Thru-Hole
-
Stock Locations:
-
Availability:1,037 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.15
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 744825510 is a 5A common mode Power Line Choke with broadband screening. The WE-CMB series choke has high interference compression asymmetric interference rate.
- Very compact design
- Highest possible current with small sizes
- -40 to 125°C Operating temperature range
744825510 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | Vertical, 4 PC Pin |
| Voltage Rating (AC) | 250 V |
| Current Rating | 5 A |
| Capacitance Tolerance | ±30 % |
| Inductance | 10 mH |
| Resistance | 55.0 mΩ |
| Test Frequency | 10 kHz |
| DC Resistance (DCR) | ≤55 mΩ |
| Current Rating (Max) | 5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 55 mΩ |
| Show | |
| Size-Length | 30 mm |
| Size-Width | 21 mm |
| Size-Height | 35 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
