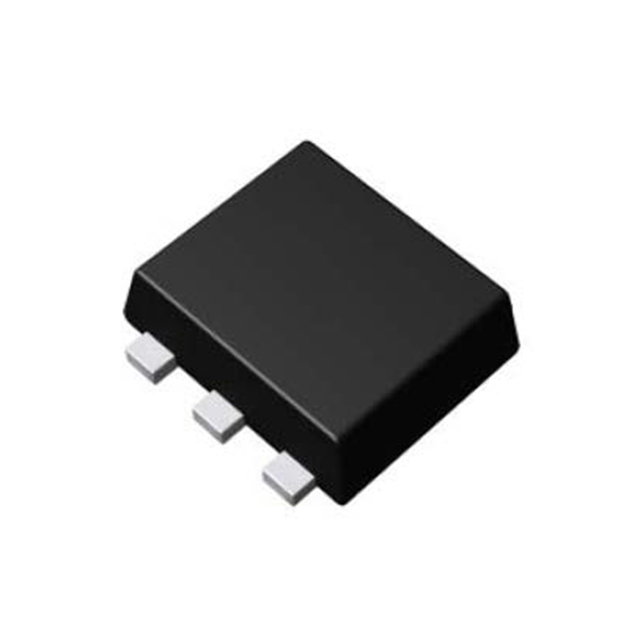

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RW1A025APT2CR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-563-6
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.044 Ω
Polarity	P-Channel
Power Dissipation	700 mW
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	12 V
Continuous Drain Current (Ids)	2.5A
Rise Time	40 ns
Input Capacitance (Ciss)	2000pF @6V(Vds)
Input Power (Max)	400 mW
Fall Time	60 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	400mW (Ta)
	Show
Size-Length	1.7 mm
Size-Width	1.4 mm
Size-Height	0.65 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
