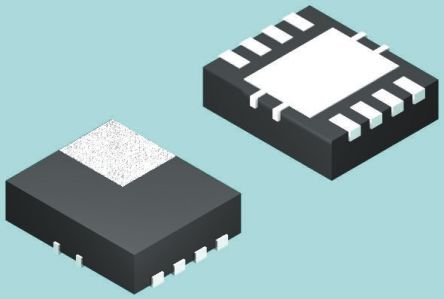

TPD3F303DQDR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4932208
Category:
RFI Shielding
Package:
WFDFN-8
Datasheet:
Datasheet 3D Model
Description:
RC (Pi) EMI Filter 2nd Order Low Pass 3Channel R = 47Ω, 100Ω, C = 20pF 8-WFDFN Exposed Pad
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.01

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD3F303DQDR is an ESD Protection and EMI Filter Device for SIM card interface. It is a highly-integrated device that provides a three-channel Electromagnetic Interference (EMI) filter and a Transient Voltage Suppressor (TVS) based ESD protection diode array. The C-R-C based low-pass filter provides EMI protection for the data, clock and reset lines of a SIM Card interface. The four-channel TVS Diode array provides IEC 61000-4-2 level 4 ESD protection for the previously mentioned signals (data, clock, reset) and the VCC power line. The device contains a 47R termination resistor for the clock line and 100R termination resistor for both the data and reset lines. The high level of integration offered by the TPD3F303DPVR makes the device well-suited for applications like cell phones, tablets, hotspots and PDAs.
Bidirectional EMI filtering and line termination with integrated ESD protection
-3dB Bandwidth 300MHz
IEC 61000-4-2 level 4 ESD Protection ±15kV contact discharge and ±15kV air gap discharge
0.1µA Maximum low leakage current
Low noise C-R-C filter topology
Integrated VCC clamp eliminates the need for external ESD protection
-40 to 85°C Operating temperature range

Show

TPD3F303DQDR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WFDFN-8
Operating Voltage	5.5 V
Capacitance	20 pF
Number of Channels	3 Channel
Number of Positions	8 Position
Clamping Voltage	10 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5.5 V
	Show
Size-Length	1.8 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
