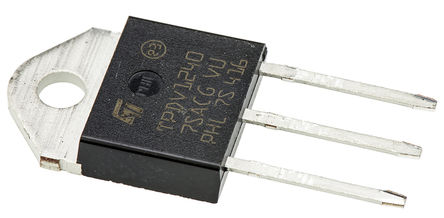

Image is for your reference only,please check specifications for details

TPDV1240RG - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2689883
Category:
TRIAC Diode, TRIAC
Package:
TOP-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TPDV1240RG Triac, 1.2kV, 40A, TOP-3, 200mA, 1.5V, 40W
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.57

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TPDVxx40 series use a high performance alternistor technology.
Featuring very high commutation levels and high surge current capability, this family is well adapted to power control on inductive load (motor, transformer...)
Features
■ On-state current (IT(RMS)): 40 A
■ Max. blocking voltage (VDRM/VRRM): 1200 V
■ Gate current (IGT): 200 mA
■ Commutation @ 10 V/µs: up to 142 A/ms
■ Noise immunity: 500 V/µs
■ insulated package:
– 2,500 V rms (UL recognized: E81734).

Show

TPDV1240RG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TOP-3
Voltage Rating (DC)	1.20 kV
Current Rating	40.0 A
Polarity	PNP
Power Dissipation	2.00 W
Holding Current	50 mA
Holding Current (Max)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	15.5 mm
Size-Width	4.6 mm
Size-Height	12.85 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
