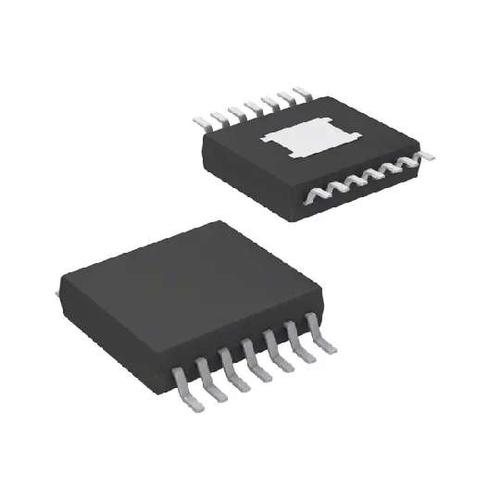

TPS2141IPWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC9009974
Category:
Power Management IC
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS2141IPWP. LDO Voltage Regulator, Adjustable, 2.7V to 5.5V in, 180mV drop, 900mV to 3.3V/250mA out, HTSSOP-14
Stock Locations:
Availability:
206 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.06

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS2140/41/50/51 is a USB 1.0 and 2.0 Specification-compatible IC containing a dual-current limiting power switch and an adjustable low dropout regulator (LDO). Both the switch and LDO limit inrush current by controlling the turnon slew rate. The unique dual-current-limiting feature of the switch allows USB peripherals to utilize high-value capacitance at the output of the switch, while keeping the inrush current low. During turnon, the switch limits the current delivered to the capacitive load to less than 100 mA.
FEATURES
Complete Power Management Solution for USB High-Power Peripherals
250 mA Low-Dropout Regulator (LDO) With Enable and 325 mA (Typ) Current Limit
LDO Supports 2.7V to 5.5V VIN and 0.9V to 3.3V Adjustable VOUT
40 mΩ(Typ) High-Side MOSFET With Dual Current Limit
Undervoltage Lockout and Power Good for LDO and Switch
CMOS- and TTL-Compatible Enable Inputs
85 µA (Typ) Supply Current
5 µA (Typ) Standby Supply Current
Available in 14-Pin HTSSOP (PowerPAD™)
–40°C to 85°C Ambient Temperature Range
Alternative to TPS2148/58 3.3-V LDO With 3.3-V Switch and 5-V Switch

Show

TPS2141IPWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Supply Voltage (DC)	5.50V (max)
Number of Outputs	1 Output
Input Voltage (DC)	5.50 V
Output Voltage	3.3 V
Output Current	250 mA
Supply Current	85 µA
Number of Positions	14 Position
voltage rating	180 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	3.3 V
Output Voltage (Min)	900 mV
Output Current (Max)	250 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.1V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.1 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
