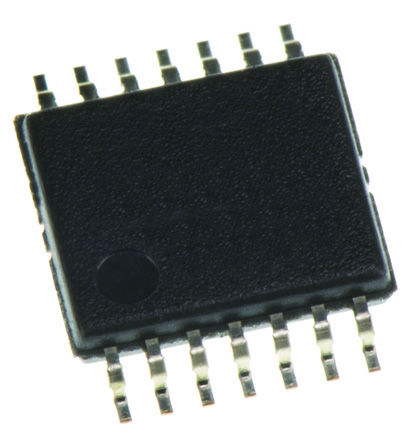

TPS23753PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC38538146
Category:
Battery Management IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS23753PW Power Over Ethernet (POE) Controller, 57V/0.85mA, 248kHz Switch/Clock, 9V UVLO Threshold, TSSOP-14
Stock Locations:
Availability:
481 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS23753PW is an IEEE 802.3 PoE Interface and Isolated Converter Controller optimized specifically for isolated converter designs. The PoE implementation supports the IEEE 802.3at standard as a 13W, type 1 PD. The requirements for an IEEE 802.3at type 1 device are a superset of IEEE 802.3-2008 (originally 802.3af) requirements. It supports a number of input-voltage Oring options including highest voltage, external adapter preference and PoE preference. The PoE interface features an external detection signature pin that can also be used to disable the internal hotswap MOSFET. This allows the PoE function to be turned off. Classification can be programmed to any of the defined types with a single resistor. The DC/DC controller features a bootstrap startup mechanism with an internal, switched current source. This provides the advantages of cycling overload fault protection without the constant power loss of a pull up resistor.
Optimized for isolated converters
Complete PoE interface
Adapter ORing support
Programmable frequency with synchronous
Robust 100V, 0.7R Hotswap MOSFET
15/8kV System-level ESD capability
Green product and no Sb/Br

Show

TPS23753PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Frequency	248 kHz
Input Voltage (DC)	57.0 V
Output Current	1.1 A
Supply Current	580 µA
Number of Channels	1 Channel
Number of Positions	14 Position
Duty Cycle	81 %
Input Voltage (Max)	57 V
Input Voltage (Min)	0 V
Output Current (Max)	400 mA
Input Power (Max)	13 W
Input Power (Max)	13 W
Maximum Duty Cycle	78.5 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0V ~ 57V
Supply Voltage (Min)	0 V
Input Voltage	57 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
