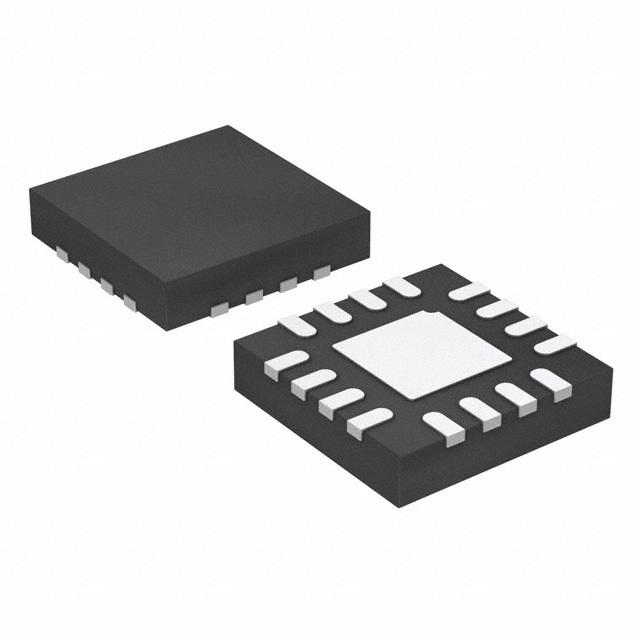

Image is for your reference only,please check specifications for details
- TPS2544RTER - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6811517
-
Category:Power Monitor
-
Package:WQFN-16
-
Datasheet:Datasheet 3D Model
-
Description:USB Power SW Charging Port Controller Single 4.5V to 5.5V 0.2A to 2.7A 16Pin WQFN T/R
-
Stock Locations:
-
Availability:250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.8
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS2544 is a USB charging port controller and power switch with an integrated USB 2.0 high-speed
- data line (D+/D–) switch. TPS2544 provides the electrical signatures on D+/D– to support charging schemes listed under device feature section.
- FEATURES
- • D+/D– CDP/DCP Modes per USB Battery Charging Specification 1.2
- • D+/D– Shorted Mode per Chinese
- Telecommunication Industry Standard YD/T 1591-2009
- • Support non-BC1.2 charging modes by automatic selection
- – D+/D– Divider Modes 2.0V/2.7V and 2.7/2.0V
- – D+/D- 1.2V Mode
- • Supports Sleep-Mode Charging and Mouse/Keyboard Wake Up
- • Automatic SDP/CDP Switching for devices that do not connect to CDP ports
- • Compatible with USB 2.0 and 3.0 Power Switch requirements
- • Integrated 73-mΩ (typ) High-Side MOSFET
- • Adjustable Current-Limit up to 3.0 A (typ)
- • Operating Range: 4.5V to 5.5V
- • Max device current
- – 2µA when device disabled
- – 270µA when device enabled
- • Drop-In and BOM Compatible with TPS2543 and TPS2546
- • Available in 16-Pin QFN (3x3) Package
- • 8KV ESD rating on DM/DP pins
- • UL Listed and CB File No. E169910
- APPLICATIONS
- • USB Ports (Host and Hubs)
- • Notebook and Desktop PCs
- • Universal Wall Charging Adapters
TPS2544RTER Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | WQFN-16 |
| Number of Outputs | 1 Output |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
