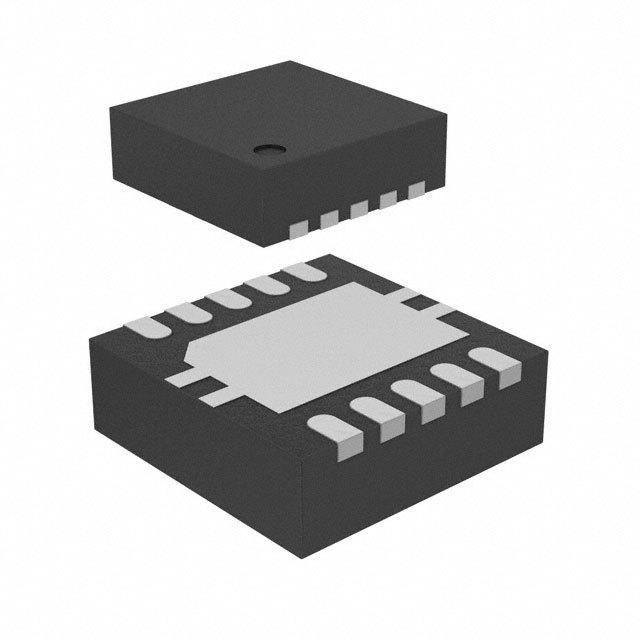

Image is for your reference only,please check specifications for details

TPS259261DRCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC11061287
Category:
Battery Management IC
Package:
VFDFN-10
Datasheet:
Datasheet 3D Model
Description:
12V, 5A, 30mΩ eFuse with Adjustable +/-15% Accurate Current Limit 10-VSON -40℃ to 85℃
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.61

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

When an unsafe power condition is detected this positive voltage TPS259261DRCT from Texas Instruments will automatically begin monitoring overvoltage and undervoltage conditions and open and close switches very quickly to protect your sensitive circuit. Its typical operating supply voltage is 12 V. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This hot swap controller has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a typical operating supply voltage of 12 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 13.8 V.

Show

TPS259261DRCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VFDFN-10
Supply Voltage (DC)	4.50V (min)
Input Voltage (DC)	12.0 V
Output Current	5 A
Number of Positions	10 Position
Output Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±15 %
Supply Voltage (Max)	13.8 V
Supply Voltage (Min)	4.5 V
Input Voltage	12 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
