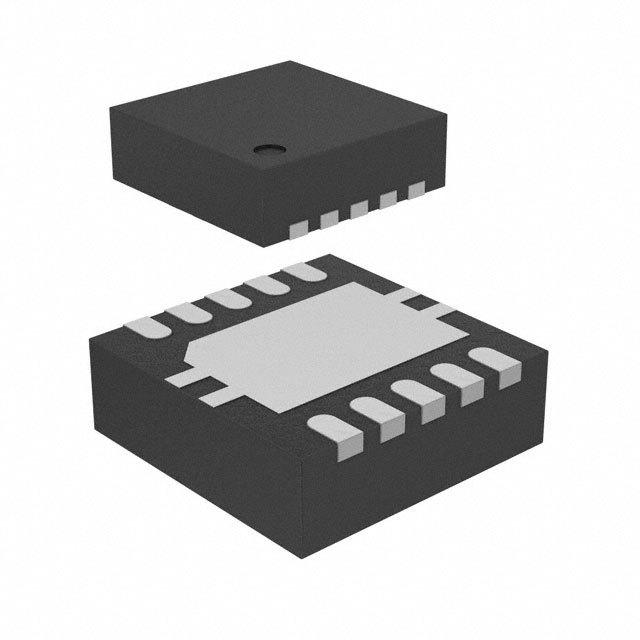

Image is for your reference only,please check specifications for details
- TPS40304ADRCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10734726
-
Category:Voltage Regulator
-
Package:VSON-10
-
Datasheet:Datasheet 3D Model
-
Description:Контроллер DC-DC (внешний ключ) 3В до 20В, широкодиапазонный синхронный понижающий контроллер для высокой плотности мощности, 600кГц, опорное напряжение 591мВ ±1%, DC-DC контроллер, синхронный понижающий, одноканальный, вход 3В до 20В, 10-выводной VSON EP, лента и катушка
-
Stock Locations:
-
Availability:260 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.12
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS40304A is a cost-optimized synchronous buck controller that operates from 3-V to 20-V input. The controller implements a voltage-mode control architecture with input-voltage feed-forward compensation that responds instantly to input voltage change. The switching frequency is fixed at 600 kHz.
- Frequency Spread Spectrum feature adds dither to the switching frequency, significantly reducing the peak EMI noise and making it much easier to comply with EMI standards.
- The TPS40304A offers design with a variety of user programmable functions, including soft-start, overcurrent protection (OCP) levels, and loop compensation.
- The OCP level is programmed by a single external resistor connected from LDRV pin to circuit ground. During initial power on, the TPS40304A enters a calibration cycle, measures the voltage at the LDRV pin, and sets an internal OCP voltage level. During operation, the programmed OCP voltage level is compared to the voltage drop across the low-side FET when it is on to determine whether there is an overcurrent condition. The TPS40304A then enters a shutdown and restart cycle until the fault is removed.
TPS40304ADRCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 10 Pin |
| Case/Package | VSON-10 |
| Number of Outputs | 1 Output |
| Output Current | 25 A |
| Power Dissipation | 2610 mW |
| Quiescent Current | 2.50 mA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 600 kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 20 V |
| Input Voltage (Min) | 3 V |
| Output Current (Max) | 25 A |
| Maximum Duty Cycle | 0.9 |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2610 mW |
| Supply Voltage | 3V ~ 20V |
| Input Voltage | 3V ~ 20V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
