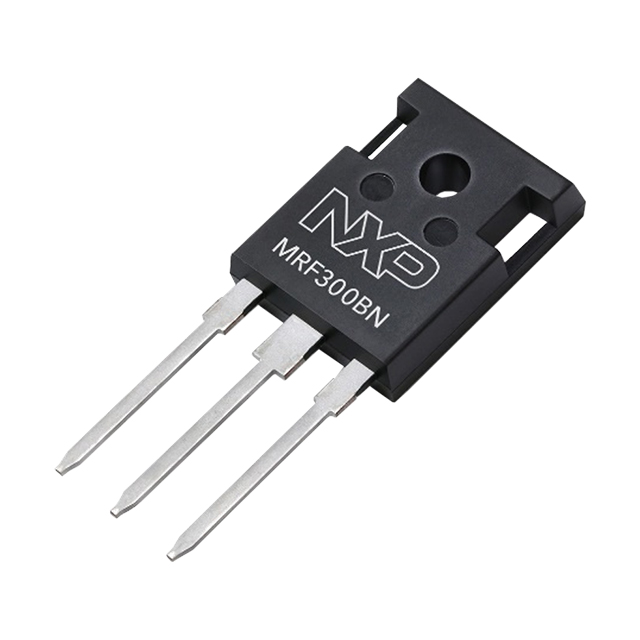

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- These high ruggedness devices are designed for use in high VSWR industrial, scientific and medical applications and HF and VHF communications as well as radio and VHF TV broadcast, sub--GHz aerospace and mobile radio applications. Their unmatched input and output design allows for wide frequency range use from 1.8 to 250 MHz.
- Unmatched input and output allowing wide frequency range utilization
- Two opposite pin-connection versions (A and B) to be used in a push-pull, two-up configuration for wideband performance
- Characterized from 30 to 50 V
- Suitable for linear application
- Integrated ESD protection with greater negative
MRF300BN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Frequency | 27MHz ~ 250MHz |
| Number of Positions | 3 Position |
| Power Dissipation | 272 W |
| Drain to Source Voltage (Vds) | 133 V |
| Output Power | 300 W |
| Gain | 18.7 dB |
| Input Capacitance (Ciss) | 403pF @50V(Vds) |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 272000 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
