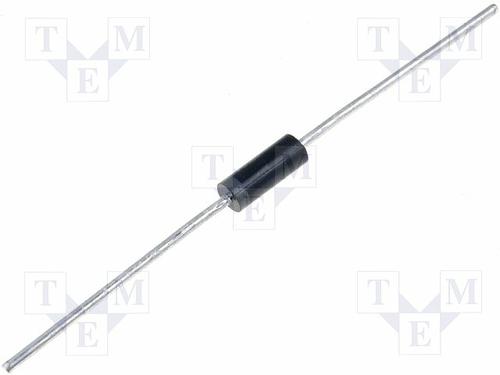

Image is for your reference only,please check specifications for details
- 1N5349B - Diotec Semiconductor
-
Manufacturer:Diotec Semiconductor
-
ManyChip's Part#:MC10102973
-
Category:Zener Diode, Zener
-
Package:DO-201
-
Datasheet:Datasheet 3D Model
-
Description:Diode Zener Single 12V 5% 5W Automotive 2Pin DO-201 Ammo
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.11
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- • Maximum power dissipation 5 W
- • Nominal Z-voltage 8.7…200 V
- • Plastic case ~ DO-201
- • Weight approx. 1 g
- • Plastic material has UL classification 94V-0
- • Standard packaging taped in ammo pack see page 16
- • Standard Zener voltage tolerance is ± 5%. Other voltage tolerances and higher Zener voltages on request.
1N5349B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-201 |
| Power Dissipation | 5 W |
| Test Current | 100 mA |
| Zener Voltage | 12 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -50 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| ECCN Code | EAR99 |
