Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 16 Pin |

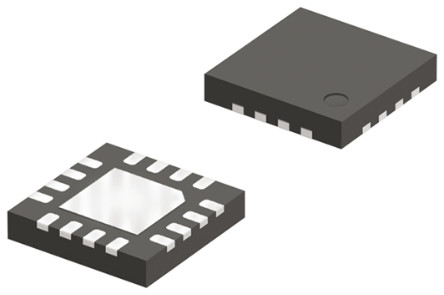

Case/Package | WQFN-16 |
Supply Voltage (DC) | 4.50V (min) |
Number of Outputs | 1 Output |
Output Voltage | 4.5V ~ 58V |
Output Current | 20 A |
Number of Positions | 16 Position |
Quiescent Current | 600 µA |
Number of Regulated Outputs | 1 Output |
Switching Frequency | 1 MHz |
Topology | Boost |
Duty Cycle | 95 % |
Input Voltage (Max) | 38 V |
Input Voltage (Min) | 4.5 V |
Output Voltage (Max) | 58 V |
Output Voltage (Min) | 4.5 V |
Output Current (Max) | 20 A |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -40 ℃ |
Supply Voltage (Max) | 38 V |
Supply Voltage (Min) | 4.5 V |
Input Voltage | 4.5V ~ 38V |
Show | |
Size-Length | 3.15 mm |
Size-Width | 3.15 mm |
Size-Height | 0.75 mm |
Operating Temperature | -40℃ ~ 150℃ |
Product Lifecycle Status | Active |
Packaging | Cut Tape (CT) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
