- TPS54020RUWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC41893461
-
Category:DC to DC Converter
-
Package:VQFN-15
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 17V Step Down Single-Out 0.8V to 15V 10A 15Pin VQFN EP T/R
-
Stock Locations:
-
Availability:206 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 14.95
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54020 is a 10-A, 4.5-V to 17-V input SWIFT converter. The innovative 3.5 mm × 3.5 mm HotRod package optimizes high-density step-down designs. The TPS54020 is a full-featured converter.
- High efficiency is achieved through the innovative integration and packaging of the high-side and low-side MOSFETs. The TPS54020 operates at continuous current mode (CCM) at higher load conditions, and transitions to Eco-mode while skipping pulses to boost the efficiency at light loads.
- Current limiting on both MOSFETs provides device and system protection. Cycle-by-cycle current limiting in the high-side MOSFET protects for overload situations. Low-side MOSFET zero current detection turns off the low-side MOSFET while operating under light loads. Three selectable current-limit thresholds allow a good fit for various applications. A hiccup or cycle-by-cycle overcurrent protection scheme is also selectable.
- Thermal shutdown protection disables switching when die temperature exceeds the thermal shutdown trip point and enables switching after the built-in thermal hysteresis and shutdown hiccup time.
- The SS pin controls the output voltage start-up ramp and allows for selectable soft-start times. Power supply sequencing is also available by configuring the enable (EN) and the open-drain power-good (PWRGD) pins.
- Two TPS54020 devices may be synchronized 180° out-of-phase by using the SYNC_OUT and CLK pins.

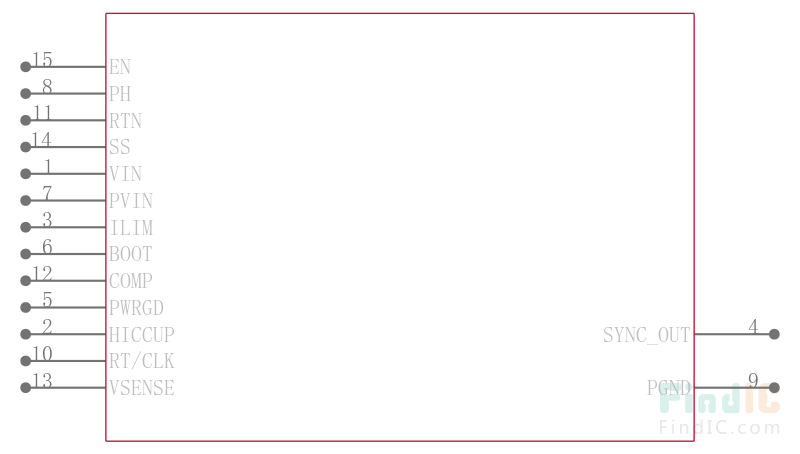

TPS54020RUWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 15 Pin |
| Case/Package | VQFN-15 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 5V |
| Output Current | 10 A |
| Quiescent Current | 600 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 200kHz ~ 1.2MHz |
| Topology | Buck |
| Input Voltage (Max) | 17 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 5 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 10 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 17V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
