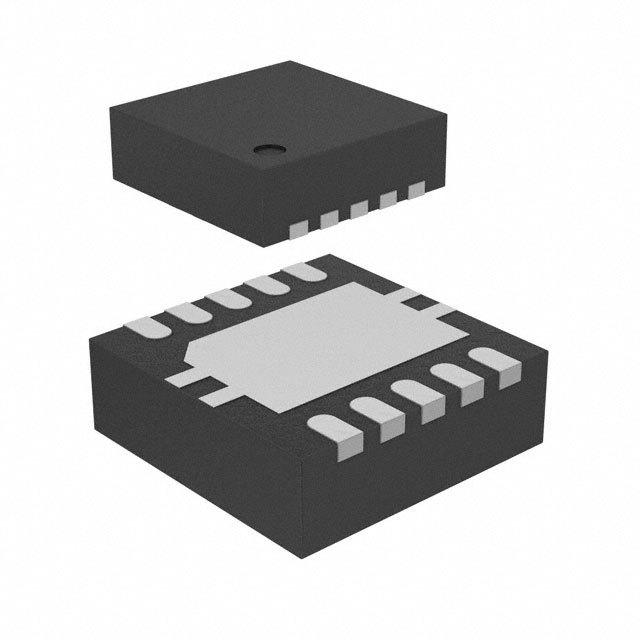

Image is for your reference only,please check specifications for details
- TPS54160ADRCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11267168
-
Category:Voltage Regulator
-
Package:VSON-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 3.5V to 60V Step Down Single-Out 0.8V to 58V 1.5A 10Pin VSON EP T/R
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.8
Updated at 24/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS54160A device is a 60-V, 1.5-A, step down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 μA. Using the enable pin, shutdown supply current is reduced to 1.3 μA.
- FEATURES
- • 3.5 V to 60 V Input Voltage Range
- • 200-mΩ High-Side MOSFET
- • High Efficiency at Light Loads with a Pulse Skipping Eco-mode™
- • Tighter Enable Threshold than TPS54160 for More Accurate UVLO Voltage
- • Adjustable UVLO Voltage and Hysteresis
- • 116 μA Operating Quiescent Current
- • 1.3 μA Shutdown Current
- • 100 kHz to 2.5 MHz Switching Frequency
- • Synchronizes to External Clock
- • Adjustable Slow Start/Sequencing
- • UV and OV Power Good Output
- • 0.8-V Internal Voltage Reference
- • MSOP10 and 3mm x 3mm VSON Package with PowerPAD™
- • Supported by WEBBENCH® and SwitcherPro™ Software Tool
- APPLICATIONS
- • 12-V, 24-V and 48-V Industrial and Commercial Low Power Systems
- • Aftermarket Auto Accessories: Video, GPS, Entertainment
TPS54160ADRCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSON-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 58V |
| Output Current | 1.5 A |
| Quiescent Current | 116 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 100kHz ~ 2.5MHz |
| Input Voltage (Max) | 60 V |
| Input Voltage (Min) | 3.5 V |
| Output Voltage (Max) | 58 V |
| Output Voltage (Min) | 0.8 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 60 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
