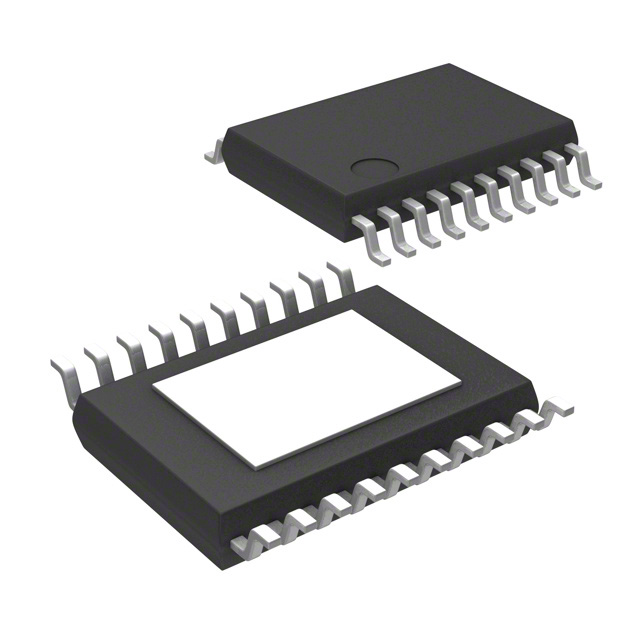

Image is for your reference only,please check specifications for details
- TPS54162QPWPRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC30289064
-
Category:DC to DC Converter
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Automotive 3.6V to 48V, 1A Buck Converter with Low Iq and Voltage Supervision 20-HTSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:254 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.62
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS54162 is a step-down switch-mode power supply with a voltage supervisor and an integrated NMOS switching FET. Integrated input voltage line feed forward topology improves line transient regulation of the voltage mode buck regulator. The regulator has a cycle-by-cycle current limit. The device also features low-power mode operation under light load conditons which reduces the supply current to 50 µA (typical). By pulling the EN pin low, the supply shutdown current is reduced to 1 µA (typical).
- An open drain reset signal indicates when the nominal output drops below the reset threshold set by an external resistor divider network. The output voltage start up ramp is controlled by a soft start capacitor. There is an internal undervoltage shut down which is activated when the input supply ramps down to 2.6 V. The device is protected during an overload condition on output by frequency fold back operation, and also has a thermal shutdown protection.
TPS54162QPWPRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.9V ~ 18V |
| Output Current | 1 A |
| Quiescent Current | 50.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 200kHz ~ 2.2MHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 48 V |
| Input Voltage (Min) | 3.6 V |
| Output Voltage (Max) | 18 V |
| Output Voltage (Min) | 0.9 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 3.6V ~ 48V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
