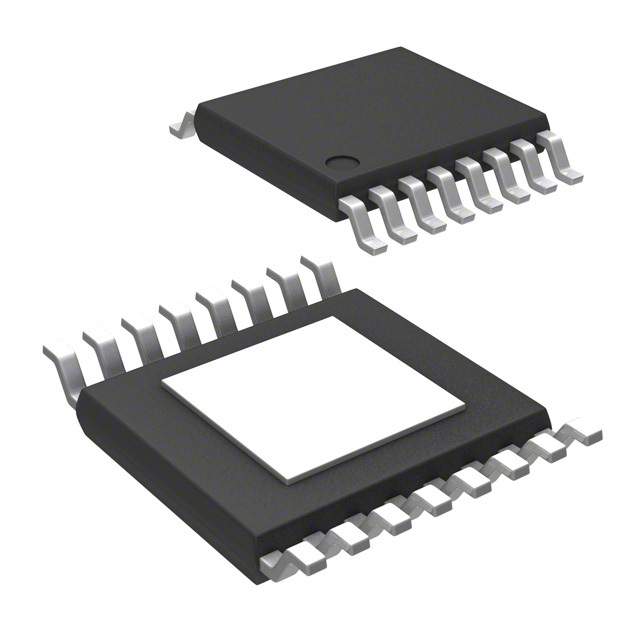

Image is for your reference only,please check specifications for details

TPS54292PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC67345439
Category:
DC to DC Converter
Package:
HTSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 4.5V to 18V Input, 1.5/2.5A, 1.2MHz Dual Synchronous Step Down SWIFT Converter Conv DC-DC Dual Step Down 4.5V to 18V 16Pin HTSSOP EP Tube
Stock Locations:
Availability:
10,832 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.09

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54292PWP is a dual output fully synchronous Buck Converter capable of supporting applications with a minimal number of external components. It operates from a 4.5 to 18V input supply voltage and supports output voltages as low as 0.8V and as high as 90% of the input voltage. Both high-side and low-side MOSFETs are integrated to provide fully synchronous conversion with higher efficiency. Channel 1 can provide up to 1.5A of continuous current, meanwhile, channel 2 supports up to 2.5A. Current mode control simplifies the compensation. The external compensation adds flexibility for the user to choose different type of output capacitors. 180° out-of-phase operation reduces the ripple current through the input capacitor, providing the benefit of reducing input capacitance, alleviating EMI and increasing capacitor life.
Dual PWM outputs 180° out-of-phase
Dedicated enable for each channel
Current mode control for simplified compensation
External compensation
Integrated bootstrap switch
Thermal shutdown protection at 145°C
Green product and no Sb/Br

Show

TPS54292PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Supply Voltage (DC)	18.0V (max)
Number of Outputs	2 Output
Output Voltage	0.8V ~ 14V
Output Current	1.5A, 2.5A
Number of Positions	16 Position
Quiescent Current	1.80 mA
Number of Regulated Outputs	2 Output
Switching Frequency	1.2 MHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	18 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	16.2 V
Output Voltage (Min)	0.8 V
Operating Temperature (Max)	145 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Input Voltage	4.5V ~ 18V
	Show
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 145℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
