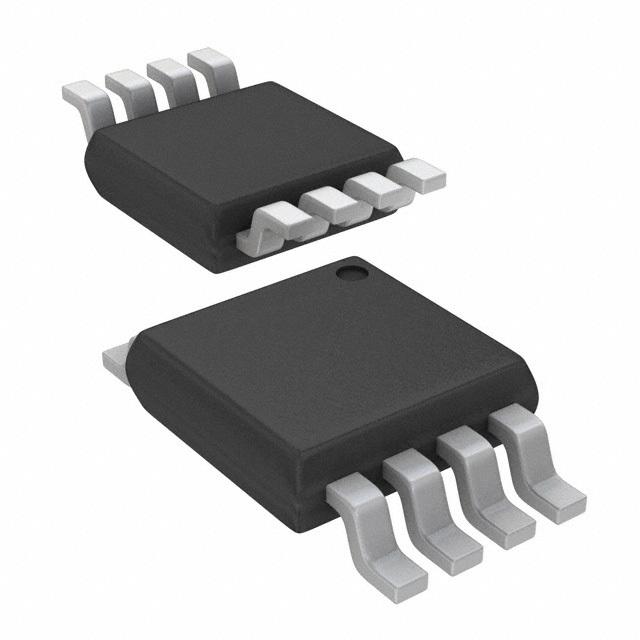

TPS60240DGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC73303864
Category:
DC to DC Converter
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Step-Up Charge Pump Regulator 170 uVrms Zero-Ripple Switched Cap Boost Converter With Fixed 3.3V Output For VCO Supply Charge Pump STPUP 3.3V 25mA 8Pin VSSOP T/R
Stock Locations:
Availability:
234 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never worry about components not turning on from improper voltage by using this TPS60240DGKR charge pump voltage doubler from Texas Instruments. With an output that has a voltage of 3.3 V, this is power management at its best. Its output produces a current of 25 mA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This inverting charge pump has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 1.8 V and a maximum of 5.5 V.

Show

TPS60240DGKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	25 mA
Power Dissipation	0.376 W
Quiescent Current	250 µA
Number of Regulated Outputs	1 Output
Output Power	376 mW
Switching Frequency	160 kHz
Topology	Boost
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	3.3 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	376 mW
Supply Voltage	1.8V ~ 5.5V
Input Voltage	1.8V ~ 5.5V
	Show
Size-Width	3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
