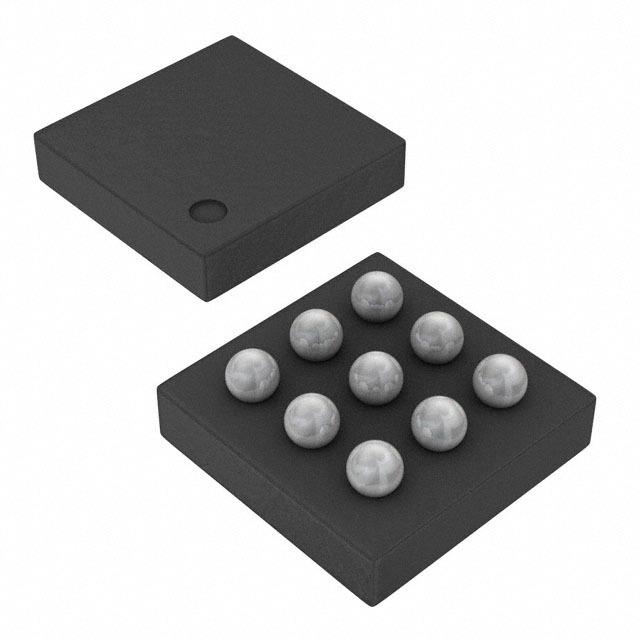

Image is for your reference only,please check specifications for details
- TPS61256YFFR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5100710
-
Category:DC to DC Converter
-
Package:DSBGA-9
-
Datasheet:Datasheet 3D Model
-
Description:3.5MHz High Efficiency Step-Up Converter In Chip Scale Packaging. 5V Output Voltage 9-DSBGA -40℃ to 85℃
-
Stock Locations:
-
Availability:404 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.2
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS6125x device provides a power supply solution for battery-powered portable applications. Intended for low-power applications, the TPS6125x supports up to 800-mA load current from a battery discharged as low as 2.65V and allows the use of low cost chip inductor and capacitors.
- FEATURES
- • 93% Efficiency at 3.5MHz Operation
- • 22µA Quiescent Current in Standby Mode
- • 36µA Quiescent Current in Normal Operation
- • Wide VIN Range From 2.3V to 5.5V
- • VIN ≥ VOUT Operation
- • IOUT ≥800mA at VOUT = 4.5V, VIN ≥2.65V
- • IOUT ≥1000mA at VOUT = 5.0V, VIN ≥3.3V
- • IOUT ≥1500mA (Peak) at VOUT = 5.0V, VIN ≥3.3V
- • ±2% Total DC Voltage Accuracy
- • Light-Load PFM Mode
- • Selectable Standby Mode or True Load Disconnect During Shutdown
- • Thermal Shutdown and Overload Protection
- • Only Three Surface-Mount External Components Required
- • Total Solution Size <25mm2
- • 9-Pin NanoFreeTM (CSP) Packaging
- APPLICATIONS
- • Cell Phones, Smart-Phones
- • Mono and Stereo APA Applications
- • USB Charging Port (5V)
TPS61256YFFR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 9 Pin |
| Case/Package | DSBGA-9 |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 900 mA |
| Quiescent Current | 20.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 3.5 MHz |
| Topology | Boost |
| Switching Current | 2.15 A |
| Input Voltage (Max) | 4.85 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Min) | 5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Min) | 2.5 V |
| Input Voltage | 3.3V ~ 4.85V |
| Show | |
| Size-Height | 0.33 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
