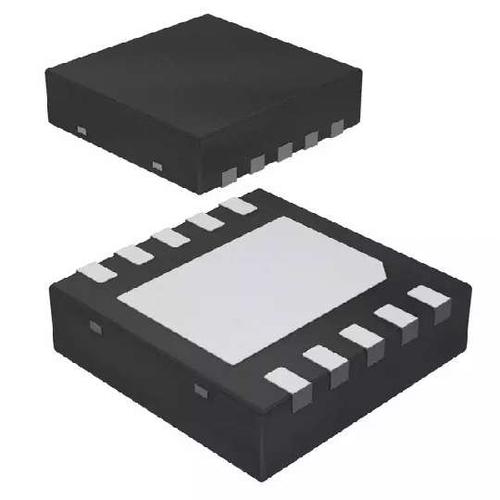

Image is for your reference only,please check specifications for details
- TPS62420QDRCRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4830033
-
Category:Voltage Regulator
-
Package:VFDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.5V to 6V Step Down Dual-Out 0.6V to 6V 1A/0.6A Automotive 10Pin VSON EP T/R
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.76
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down TPS62420QDRCRQ1 DC to DC converter from Texas Instruments. This converter"s 2 outputs can produce a current up to 1|0.6 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.5 V that does not exceed 6 V. With an adjustable output that has a voltage of 0.6 to 6 V, this is power management at its best. At a load regulation of 1% your circuit is capable of maintaining a constant voltage level at your output. This converter is 95 % efficient. Its switching regulator has a frequency of 2000 to 2500 kHz. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
TPS62420QDRCRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VFDFN-10 |
| Number of Outputs | 2 Output |
| Output Voltage | 0.6V ~ 6V |
| Output Current | 600mA, 1A |
| Quiescent Current | 32.0 µA |
| Number of Regulated Outputs | 2 Output |
| Switching Frequency | 2.25 MHz |
| Topology | Buck |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 6 V |
| Output Voltage (Min) | 0.6 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.5 V |
| Input Voltage | 2.5V ~ 6V |
| Show | |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
