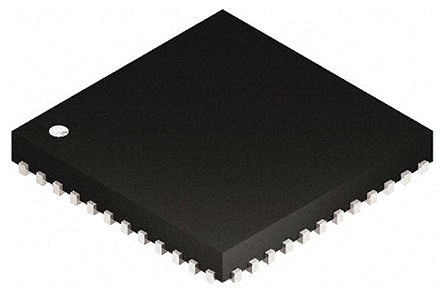

Image is for your reference only,please check specifications for details

TPS65910A1RSL - TI
Manufacturer:
TI
ManyChip's Part#:
MC41519362
Category:
Power Management IC
Package:
VQFN-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS65910A1RSL Power Managment IC, Step-Down DC-DC Converters and LDOs, 5.5V, QFN-48
Stock Locations:
Availability:
208 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS65910A1RSL is an integrated Power Management IC dedicated to applications powered by one Li-Ion or Li-Ion polymer battery cell or 3-series Ni-MH cells or by a 5V input, it requires multiple power rails. The device provides three step-down converters, one step-up converter and eight LDOs and is designed to support the specific power requirements of OMAP-based applications. Two of the step-down converters provide power for dual processor cores and are controllable by a dedicated class-3 SmartReflex interface for optimum power savings. The third converter provides power for the I/Os and memory in the system. The device includes eight general-purpose LDOs providing a wide range of voltage and current capabilities. The LDOs are fully controllable by the I2C interface. In addition to the power resources, the device contains an embedded power controller (EPC) to manage the power sequencing requirements of the OMAP systems and an RTC.
Embedded power controller
SmartReflex compliant dynamic voltage management for processor cores
8 LDO voltage regulators and one real-time clock (RTC) LDO (internal purpose)
One high-speed I2C interface for general-purpose control commands (CTL-I2C)
One high-speed I2C interface for SmartReflex class 3 controls and command (SR-I2C)
Two enable signals multiplexed with SR-I2C
Thermal shutdown protection and hot-die detection
One configurable GPIO
DC-DC switching synchronization through internal or external 3MHz clock

Show

TPS65910A1RSL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Supply Voltage (DC)	5.50 V
Number of Outputs	11 Output
Number of Positions	48 Position
Number of Regulated Outputs	12 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	1.88 V
Output Voltage (Min)	1.78 V
Output Current (Max)	1.7 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5.5 V
	Show
Size-Length	6.15 mm
Size-Width	6.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
