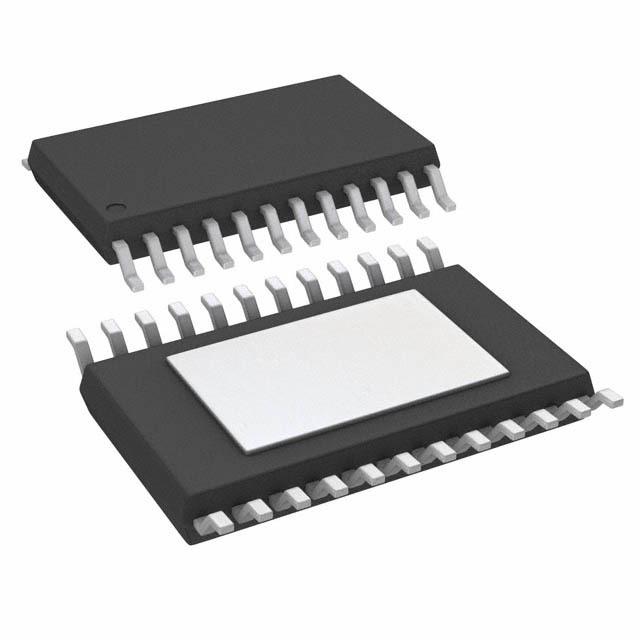

Image is for your reference only,please check specifications for details
- TPS70345PWP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2807030
-
Category:Voltage Regulator
-
Package:HTSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Linear Voltage Regulator IC Positive Fixed 2 Output 3.3V, 1.2V 1A, 2A 24-HTSSOP
-
Stock Locations:
-
Availability:259 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.2
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS70345PWP is a Dual-output LDO Voltage Regulator designed to provide a complete power management solution for TI DSP, processor power, ASIC, FPGA and digital applications where dual output voltage regulators are required. Easy programmability of the sequencing function makes this family ideal for any TI DSP application with power sequencing requirements. Differentiated features, such as accuracy, fast transient response, SVS supervisory circuit (power-on reset), manual reset inputs and enable function provide a complete system solution. The TPS70345 voltage regulator offers very low dropout voltage and dual outputs with power up sequence control, designed primarily for DSP applications. This device has low noise output performance without using any added filter bypass capacitors and is designed to have a fast transient response and be stable with 47µF low ESR capacitors. Separate voltage inputs allow the designer to configure the source power.
- Dual output voltages for split-supply applications
- Independent enable functions
- Output current range of 1A on regulator 1 and 2A on regulator 2
- Fast transient response
- Voltage options (3.3/2.5, 3.3/1.8, 3.3/1.5, 3.3/1.2V) and dual adjustable outputs
- Open drain power-on reset with 120ms delay
- Open drain power good for regulator 1
- Ultralow 185µA typical quiescent current
- 2µA Input current during standby
- Low noise (78µVRMS without bypass capacitor)
- Quick output capacitor discharge feature
- Two manual reset inputs
- 2% Accuracy overload and temperature
- Under-voltage lockout (UVLO) feature
- Thermal shutdown protection
- Green product and no Sb/Br
- IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
TPS70345PWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | HTSSOP-24 |
| Number of Outputs | 2 Output |
| Input Voltage (DC) | 6.00V (max) |
| Output Voltage | 3.30 V |
| Output Current | 1A, 2A |
| Supply Current | 250 µA |
| Number of Positions | 24 Position |
| Power Dissipation | 4.115 W |
| Quiescent Current | 0.185 mA |
| Output Capacitor Type | Tantalum |
| voltage rating | 160 mV |
| Number of Regulated Outputs | 2 Output |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 2.7 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 4115 mW |
| Accuracy | ±2 % |
| Input Voltage | 2.7V ~ 6V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HK STC License | NLR |
