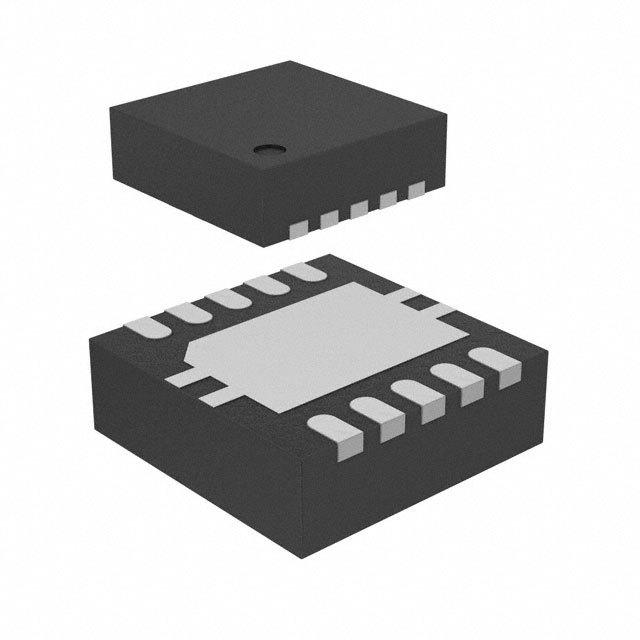

Image is for your reference only,please check specifications for details

TPS71202DRCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC38537064
Category:
Voltage Regulator
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
Dual Channel LDO Dual 250mA Output, UltraLow Noise, High PSRR Low Dropout Linear Regulator LDO Regulator Pos 1.2V to 5.5V 0.25A 10Pin VSON EP T/R
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.57

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS71202DRCT is an adjustable low-dropout (LDO) Voltage Regulator tailored to noise-sensitive and RF applications. This device features dual 250mA LDOs with ultralow noise, high power-supply rejection ratio (PSRR) and fast transient and start-up response. The regulator output is stable with 2.2µF ceramic output capacitors and features very low-dropout voltages. This regulator achieves fast start-up times while consuming very low quiescent current. When the device is placed in standby mode, the supply current is reduced to less than 0.3µA typical. This regulator exhibits approximately 32µRMS of output voltage noise with VOUT = 2.8V and a 0.01µF noise reduction (NR) capacitor. Applications with analog components that are noise-sensitive such as portable RF electronics will benefit from high PSRR, low noise and fast line and load transient features.
Excellent load/line transient response
Independent enable pins
Thermal shutdown and independent current limit
60µs Fast start-up time
Green product and no Sb/Br

Show

TPS71202DRCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Number of Outputs	2 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	1.2V ~ 5.5V
Output Current	250 mA
Number of Positions	10 Position
Power Dissipation	1.92 W
Quiescent Current	300 µA
Output Capacitor Type	Ceramic
voltage rating	125 mV
Number of Regulated Outputs	2 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	0.25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1920 mW
Accuracy	3 %
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
