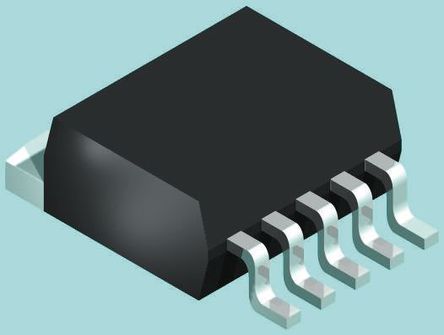

Image is for your reference only,please check specifications for details

TPS72501DCQ - TI
Manufacturer:
TI
ManyChip's Part#:
MC48969834
Category:
Voltage Regulator
Package:
SOT-223-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 1A, Adj.(1.22 to 5.5V), Any cap, Low Input Voltage, Integrated SVS LDO Regulator Pos 1.2V to 5V 1A 6Pin(5+Tab) SOT-223 Tube
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS72501DCQ is a low-dropout (LDO) Linear Regulator has fixed voltage options available that is commonly used to power the latest DSPs, FPGAs and microcontrollers. An adjustable option ranging from 1.22 to 5.5V is also available. The integrated supervisory circuitry provides an active low RESET/ signal when the output falls out of regulation. The no capacitor/any capacitor feature allows the customer to tailor output transient performance as needed. Therefore, compared to other regulator capable of providing the same output current, this family of regulators can provide a stand-alone power supply solution or a post regulator for a switch mode power supply. This regulator is ideal for higher current applications. The family operates over a wide range of input voltages and has very low dropout. Although an output capacitor is not required for stability, transient response and output noise are improved with a 10µF output capacitor.
Thermal and overcurrent protection
Stable with any type/value output capacitor
Integrated supervisor (SVS) with 50ms RESET delay time
Less than 1µA standby current
Green product and no Sb/Br

Show

TPS72501DCQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-223-6
Supply Voltage (DC)	6.00 V, 6.00 V (max)
Number of Outputs	1 Output
Output Voltage	1.2V ~ 5V
Output Current	1 A
Supply Current	225µA ~ 325µA
Number of Positions	6 Position
Quiescent Current	75.0 µA
Output Capacitor Type	Ceramic
voltage rating	170 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6 V
Input Voltage (Min)	1.8 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.22 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Supply Voltage (Min)	1.8 V
Input Voltage	1.8V ~ 6V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
