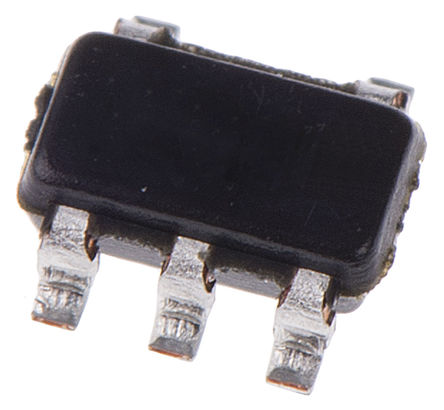

Image is for your reference only,please check specifications for details

TPS73218DBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC7771543
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 250mA, Fixed(1.8V), Fast Transient Response, Reverse Current Protection LDO Regulator Pos 1.8V 0.25A 5Pin SOT-23 T/R
Stock Locations:
Availability:
165 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.49

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS73218DBVT is a 1.8V fixed output low-dropout (LDO) Linear Regulator uses an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low equivalent series resistance (ESR) and even allows operation without a capacitor. The device also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current. The device uses an advanced BiCMOS process to yield high precision while delivering very low-dropout (LDO) voltages and low ground pin current. Current consumption, when not enabled, is less than 1µA. The extremely low output noise is ideal for powering VCOs. This device is protected by thermal shutdown and foldback current limit.
Stable with no output capacitor or any value or type of capacitor
40mV at 250mA Ultralow dropout voltage
Excellent load transient response - with or without optional output capacitor
NMOS topology provides low reverse leakage current
30µVrms Low noise (10kHz to 100kHz)
0.5% Initial accuracy
1% Overall accuracy (line, load and temperature)
<1µA Quiescent current (IQ) in shutdown mode
Thermal shutdown and specified minimum and maximum current limit protection
Green product and no Sb/Br

Show

TPS73218DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	1.8 V
Output Current	250 mA
Supply Current	550µA ~ 950µA
Number of Positions	5 Position
Power Dissipation	560 W
Quiescent Current	0.4 mA
Output Capacitor Type	Ceramic
voltage rating	40 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.25 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	5.5V ~ 1.7V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
