- ADUM141D1BRWZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1408233
-
Category:Interface Isolator, Digital Isolator
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Digital Isolator CMOS 4CH 150Mbps Medical 16Pin SOIC W Tube
-
Stock Locations:
-
Availability:264 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.9
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

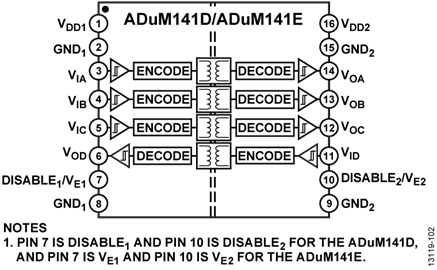

- The ADuM141D is a quad-channel digital isolator based on Analog Devices, Inc., iCoupler® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices and other integrated couplers. The maximum propagation delay is 13 ns with a pulse width distortion of less than 3 ns at 5 V operation. Channel matching is tight at 3.0 ns maximum.
- The ADuM141D data channels are independent and are available in a variety of configurations with a withstand voltage rating of 3.0 kV rms or 3.75 kV rms. The devices operate with the supply voltage on either side ranging from 1.8 V to 5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.
- Unlike other optocoupler alternatives, dc correctness is ensured in the absence of input logic transitions. Two different fail-safe options are available, by which the outputs transition to a predetermined state when the input power supply is not applied or the inputs are disabled. The ADuM140E1/ADuM141E1/
- ADuM142E1 is pin-compatible with the ADuM1400/ADuM1401/ADuM1402.
- Applications
- General-purpose multichannel isolation
- Serial peripheral interface (SPI)/data converter isolation
- Industrial field bus isolation
- ### Features and Benefits
- High common-mode transient immunity: 100 kV/μs
- High robustness to radiated and conducted noise
- Low propagation delay
- 13 ns maximum for 5 V operation
- 15 ns maximum for 1.8 V operation
- 150 Mbps maximum guaranteed data rate
- Backward compatibility
- ADuM140E1/ADuM141E1/ADuM142E1 pin-compatible with ADuM1400/ADuM1401/ADuM1402
- Low dynamic power consumption
- 1.8 V to 5 V level translation
- High temperature operation: 125°C
- Fail-safe high or low options
- 16-lead, RoHS compliant, SOIC package
- Qualified for automotive applications
- See data sheet for additional features
ADUM141D1BRWZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Rise/Fall Time | 2.5 ns |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Power Dissipation | 2780 mW |
| Rise Time | 1 ms |
| Isolation Voltage | 3750 Vrms |
| Input Current (Min) | 15.9 mA |
| Fall Time (Max) | 2.5 ns |
| Fall Time (Max) | 2.5 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2780 mW |
| Supply Voltage | 1.7V ~ 5.5V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
