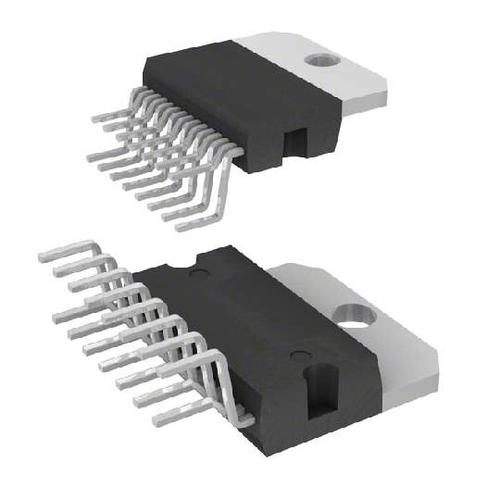

Image is for your reference only,please check specifications for details
- TDA7376B - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC1247440
-
Category:Audio Amplifier IC
-
Package:Multiwatt-15
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 37W Class-AB 15Pin(15+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:322 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.74
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TDA7376B is a new technology dual bridge Audio Amplifier in Multiwatt 15 package designed for car radio applications. Thanks to the fully complementary PNP/NPN output stage configuration the TDA7376B delivers a rail-to-rail voltage swing
- with no need of bootstrap capacitors. Differential input pairs, that will accept either single ended or differential input signals, guarantee high noise immunity making the device suitable for both car radio and car boosters applications.
- HIGH OUTPUT POWER CAPABILITY:
- 2 x 40W max./4Ω
- 2 x 35W/4Ω EIAJ
- 2 x 25W4Ω @ 14.4V, 1KHz, 10%
- DIFFERENTIAL INPUTS
- MINIMUM EXTERNAL COMPONENT COUNT
- INTERNALLY FIXED GAIN (26dB)
- MUTE FUNCTION (CMOS COMPATIBLE)
- AUTOMUTE AT MINIMUM SUPPLY VOLTAGE DETECTION
- STAND-BY FUNCTION
- NO AUDIBLE POP DURING MUTE AND ST BY OPERATIONS
- CLIPPING DETECTOR WITH PROGRAMMABLE DISTORTION THRESHOLD
- PROTECTIONS:
- SHORT CIRCUIT (OUT TO GROUND, OUT TO SUPPLY VOLTAGE, ACROSS THE LOAD)
- OVERRATING CHIP TEMPERATURE WITH SOFT THERMAL LIMITER
- LOAD DUMP VOLTAGE
- FORTUITOUS OPEN GROUND
- LOUDSPEAKER DC CURRENT
- ESD
TDA7376B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | Multiwatt-15 |
| Supply Voltage (DC) | 18.0 V |
| Output Current | 8 A |
| Supply Current | 200 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 15 Position |
| Power Dissipation | 36000 mW |
| Common Mode Rejection Ratio | 60 dB |
| Gain Bandwidth Product | 75 kHz |
| Output Power | 37 W |
| Gain | 26 dB |
| Output Current (Max) | 8000 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 36000 mW |
| Minimum CMRR Range | 60 dB |
| Supply Voltage | 8V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | -40℃ ~ 105℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
