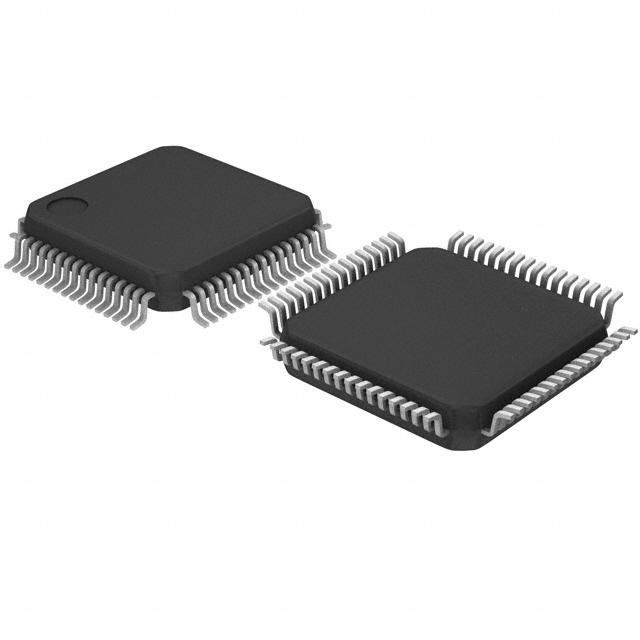

Image is for your reference only,please check specifications for details
- HD64F3664FPV - Renesas Electronics
-
Manufacturer:Renesas Electronics
-
ManyChip's Part#:MC16130196
-
Category:Microcontroller, MCU IC
-
Package:LQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:H8/300H H8 H8/300H Tiny Microcontroller IC 16Bit 16MHz 32KB (32K x 8) FLASH 64-LQFP (10x10)
-
Stock Locations:
-
Availability:298 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 9.9
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Single chip 16bit microcontroller
- H8 family/H8/300H tiny series CPU core
- Flash memory version
- Upward-compatible with H8/300 CPU on an object level
- SCI and I2C interface
- 16bit/8bit timer and watchdog timer
- Supports various power-down modes
HD64F3664FPV Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | LQFP-64 |
| Frequency | 16 MHz |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Number of Positions | 64 Position |
| Clock Speed | 16.0 MHz, 16.0 MHz (max) |
| RAM Memory Size | 2 KB |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 32 KB |
| Number of I/O Pins | 29 IO |
| Access Time | 16.0 µs |
| Memory Size | 32000 B |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 29 Input IO |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Operating Temperature | -20℃ ~ 75℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
