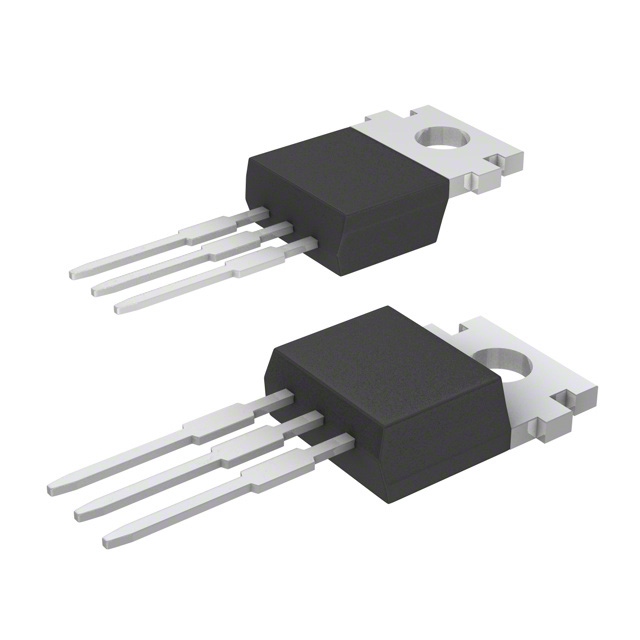

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF640 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	200 V
Current Rating	18.0 A
Drain to Source Resistance (on) (Rds)	180 mΩ
Polarity	N-Channel
Power Dissipation	125W (Tc)
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	18.0 A
Rise Time	27 ns
Input Capacitance (Ciss)	1560pF @25V(Vds)
Input Power (Max)	125 W
Fall Time	25 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	125W (Tc)
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
