Description

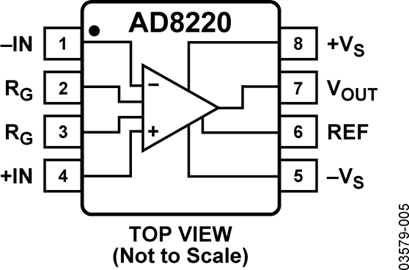

- GENERAL DESCRIPTION
- The AD8220 is the first single-supply JFET input instrumentation amplifier available in an MSOP package. Designed to meet the needs of high performance, portable instrumentation, the AD8220 has a minimum common-mode rejection ratio (CMRR) of 86 dB at dc and a minimum CMRR of 80 dB at 5 kHz for G = 1. Maximum input bias current is 10 pA and typically remains below 300 pA over the entire industrial temperature range. Despite the JFET inputs, the AD8220 typically has a noise corner of only 10 Hz.
- FEATURES
- Low input currents
- 10 pA maximum input bias current (B grade)
- 0.6 pA maximum input offset current (B grade)
- High CMRR
- 100 dB CMRR (minimum), G = 10 (B grade)
- 80 dB CMRR (minimum) to 5 kHz, G = 1 (B grade)
- Excellent ac specifications and low power
- 1.5 MHz bandwidth (G = 1)
- 14 nV/√Hz input noise (1 kHz)
- Slew rate 2 V/μs
- 750 μA quiescent supply current (maximum) Versatile
- MSOP package
- Rail-to-rail output
- Input voltage range to below negative supply rail
- 4 kV ESD protection
- 4.5 V to 36 V single supply
- ±2.25 V to ±18 V dual supply
- Gain set with single resistor (G = 1 to 1000)
- APPLICATIONS
- Medical instrumentation
- Precision data acquisition
- Transducer interface
AD8220 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
