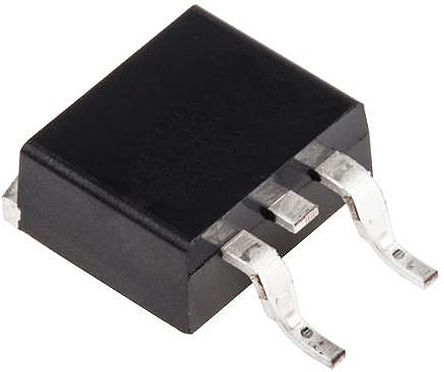

- N-Channel 100V 200A (Ta) 375W (Tc) Surface Mount DDPAK/TO-263-3
CSD19536KTTT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-263-3 |
| Drain to Source Resistance (on) (Rds) | 0.002 Ω |
| Polarity | N-Channel |
| Power Dissipation | 375 W |
| Threshold Voltage | 2.5 V |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 200A |
| Rise Time | 8 ns |
| Input Capacitance (Ciss) | 9250pF @50V(Vds) |
| Fall Time | 6 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 375W (Tc) |
| Show | |
| Size-Length | 10.67 mm |
| Size-Width | 9.65 mm |
| Size-Height | 4.83 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/06/15 |
