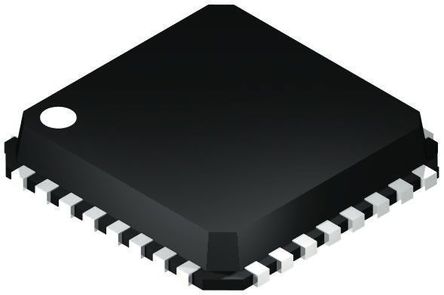

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADAU1961WBCPZ is a low power Stereo Audio Codec supports stereo 48kHz record and playback at 35mW from a 3.3V analog supply. The stereo audio ADCs and DACs support sample rates from 8 to 96kHz as well as a digital volume control. The record path includes an integrated microphone bias circuit and six inputs. The inputs can be mixed and muxed before the ADC, or they can be configured to bypass the ADC. The ADAU1961 includes a stereo digital microphone input. It includes five high power output drivers (two differential and three single-ended), supporting stereo headphones, an earpiece, or other output transducer. AC-coupled or capless configurations are supported. Individual fine level controls are supported on all analog outputs. The output mixer stage allows for flexible routing of audio. The serial control bus supports the I²C and SPI protocols. The serial audio bus is programmable for I²S, left-/right-justified and TDM modes.
Flexible analog input/output mixers
Stereo digital microphone input
Analog automatic level control (ALC)
Microphone bias reference voltage
I²C and SPI control interfaces

Show

ADAU1961WBCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Number of Positions	32 Position
Sample Rate	96 KSPS
Resolution (Bits)	24.0 Bit
Number of ADCs	2 ADC
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	2 Channel
Number of Output Channels	2 Channel
Number of DACs	2 DAC
Supply Voltage	2.97V ~ 3.65V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
