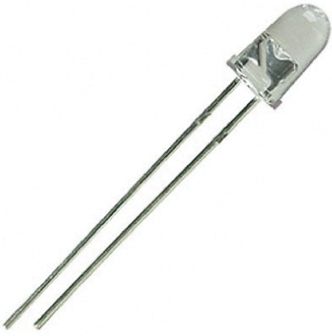

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VSLY5850 is a 850nm Infrared Emitting Diode based on GaAlAs surface emitter chip technology with extreme high radiant intensity, high optical power and high speed and moulded in a clear. It is suitable for use in infrared radiation source for operation with CMOS cameras, high speed IR data transmission, smoke-automatic fire detectors and IR flash.
- Leads with stand-off
- High reliability
- High radiant power
- High radiant intensity
- ±3° Narrow angle of half intensity
VSLY5850 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-1 |
| Rise/Fall Time | 0.01 µs |
| Number of Positions | 2 Position |
| Forward Voltage | 1.65 V |
| Wavelength | 850 nm |
| Viewing Angle | 6° |
| Peak Wavelength | 850 nm |
| Power Dissipation | 190 W |
| Rise Time | 10 ns |
| Test Current | 100 mA |
| Forward Current | 100 mA |
| Maximum Forward Voltage (Max) | 1.9 V |
| Forward Current (Max) | 100 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 190 mW |
| Show | |
| Size-Height | 8.6 mm |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
