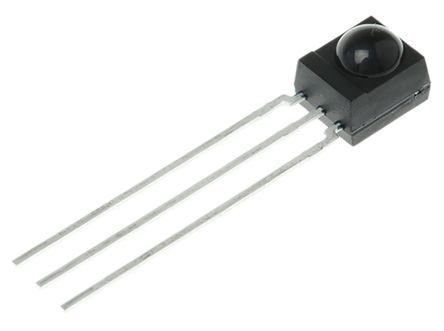

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TSSP4P38 is an IR Mid Range Proximity Sensor receives 38kHz modulated signals and has a peak sensitivity of 940nm. It is a compact infrared detector module for proximity sensing applications. The length of the detectors output pulse varies in proportion to the amount of light reflected from the object being detected.
- Up to 2m for proximity sensing
- Low supply current
- Shielding against EMI
- Visible light is suppressed by IR filter
- Insensitive to supply voltage ripple and noise
TSSP4P38 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 3 Pin |
| Case/Package | - |
| Supply Voltage (DC) | 2.50V (min) |
| Output Current | 5 mA |
| Supply Current | 700 µA |
| Number of Positions | 3 Position |
| Viewing Angle | 90° |
| Peak Wavelength | 940 nm |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 2.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 3.9 mm |
| Size-Height | 6.95 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
