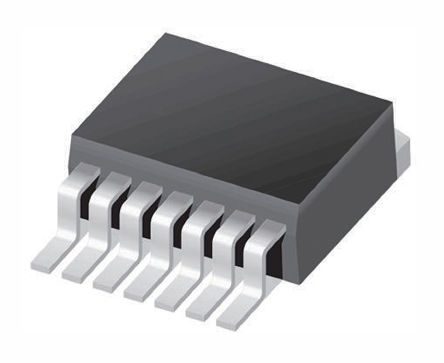

Image is for your reference only,please check specifications for details

TPS74401KTWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC20035763
Category:
Voltage Regulator
Package:
TO-263-8
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 3A, Adj.(0.8 to 3.3V), Fast Transient Response, Programmable Soft Start LDO Regulator Pos 0.796V to 3.6V 3A 8Pin(7+Tab) TO-263 T/R
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.9

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS74401KTWT is a low-dropout (LDO) Linear Regulator provides an easy-to-use robust power-management solution for a wide variety of applications. The user-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and well-suited for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulator. This complete flexibility lets the user configure a solution that meets the sequencing requirements of field-programmable gate arrays (FPGAs), digital signal processors (DSPs) and other applications with specific start-up requirements. A precision reference and error amplifier deliver 1% accuracy over load, line, temperature and process. The LDOs is stable without an output capacitor or with ceramic output capacitors.
Stable with any or no output capacitor
Excellent transient response
Open-drain power-good
Supports input voltages as low as 0.9V with external bias supply
115mV at 3A Typical ultra-low dropout
Green product and no Sb/Br

Show

TPS74401KTWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-8
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	0.796V ~ 3.6V
Output Current	3 A
Number of Positions	7 Position
Power Dissipation	5.32 W
Quiescent Current	3.00 mA
Output Capacitor Type	Ceramic
voltage rating	115 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	900 mV
Output Voltage (Max)	3.6 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5320 mW
Accuracy	±1 %
Input Voltage	0.8V ~ 5.5V
	Show
Size-Length	10.1 mm
Size-Width	8.89 mm
Size-Height	4.44 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
