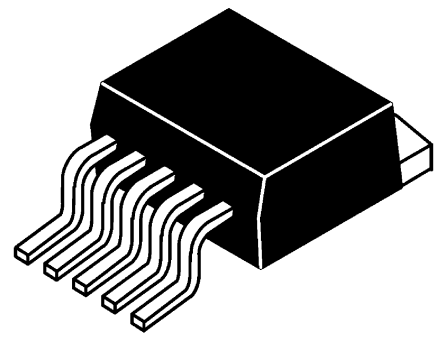

Image is for your reference only,please check specifications for details

TPS75733KTTT - TI
Manufacturer:
TI
ManyChip's Part#:
MC29451533
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 3A, Fixed(3.3V), Fast Transient Response, Low Quiescent Current LDO Regulator Pos 3.3V 3A 6Pin(5+Tab) TO-263 T/R
Stock Locations:
Availability:
10,519 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS75733KTTT is a 3.3V fixed output low-dropout (LDO) Linear Regulator with integrated power-good (PG). This device is capable of supplying 3A of output current with a dropout of 150mV. Therefore, the device is capable of performing a 3.3 to 2.5V conversion. Quiescent current is 125µA at full load and drops down to less than 1µA when the device is disabled. The device is designed to have fast transient response for large load current changes. Because the PMOS device behaves as a low-value resistor, the dropout voltage is low and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is low and independent of output loading. These two key specifications yield a significant improvement in operating life for battery-powered systems.
Open drain power-good (PG) status output
Fast transient response
3% Tolerance over specified conditions
Thermal shutdown protection
Green product and no Sb/Br

Show

TPS75733KTTT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	3.3 V
Output Current	3 A
Number of Positions	5 Position
Quiescent Current	0.125 mA
Output Capacitor Type	Tantalum
voltage rating	150 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.8 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 %
Input Voltage	≤5.5 V
	Show
Size-Length	10.16 mm
Size-Width	8.42 mm
Size-Height	4.58 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
