Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 5 Pin |

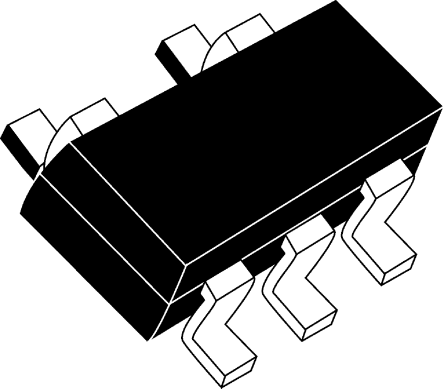

Case/Package | TSOT-23-5 |
Power Rating | 0.5 W |
Number of Outputs | 1 Output |
Output Voltage | 2.5 V |
Output Current | 150 mA |
Supply Current | 1.3µA ~ 8µA |
Number of Positions | 5 Position |
Power Dissipation | 0.5 W |
Quiescent Current | 0.0005 mA |
Output Capacitor Type | Ceramic |
voltage rating | 130 mV |
Number of Regulated Outputs | 1 Output |
Input Voltage (Max) | 5.5 V |
Input Voltage (Min) | 2.2 V |
Output Voltage (Min) | 2.5 V |
Output Current (Max) | 150 mA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 500 mW |
Accuracy | 2 % |
Input Voltage | ≤5.5 V |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.6 mm |
Size-Height | 0.87 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
