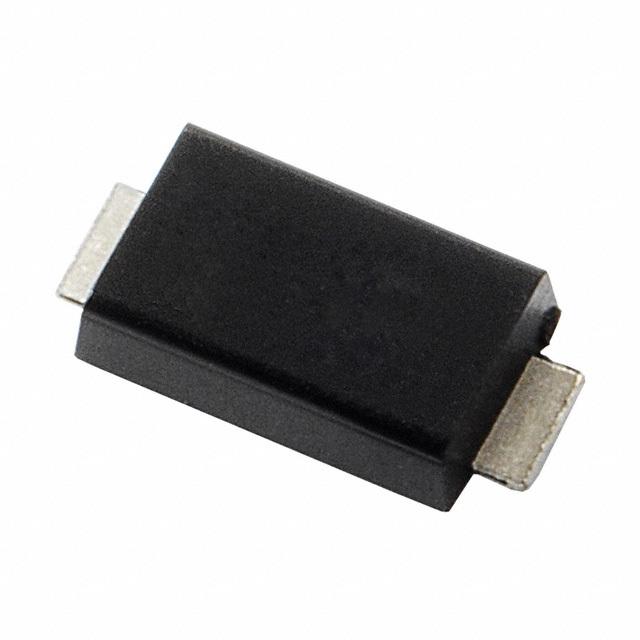

Image is for your reference only,please check specifications for details
- TPSMA6L36A - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC14836900
-
Category:TVS Diode
-
Package:DO-221AC
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE TPSMA6L36A TVS Diode, TPSMA6L Series, Unidirectional, 36V, 58.1V, DO-221AC, 2Pins
-
Stock Locations:
-
Availability:324 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.11
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 58.1V Clamp 10.4A Ipp Tvs Diode Surface Mount DO-221AC
TPSMA6L36A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-221AC |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Forward Voltage | 3.5 V |
| Power Dissipation | 3 W |
| Clamping Voltage | 58.1 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 44.2 V |
| Peak Pulse Power | 600 W |
| Min Breakdown Voltage | 40 V |
| Reverse Breakdown Voltage | 40 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 150℃ |
| Show | |
| Size-Length | 4.6 mm |
| Size-Width | 2.95 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -50℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
