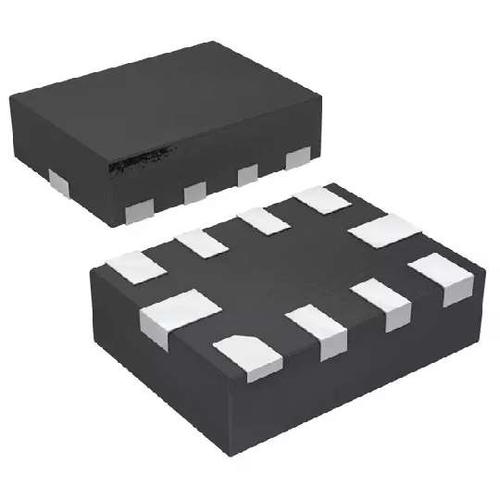

Image is for your reference only,please check specifications for details
- TS3USB221AQRSERQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3010129
-
Category:Multiplexer IC
-
Package:UQFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Automotive ESD Protected, High-Speed USB 2.0 (480Mbps) 1: 2 Multiplexer/Demultiplexer Switch 10-UQFN -40℃ to 125℃
-
Stock Locations:
-
Availability:230 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.45
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TS3USB221A-Q1 is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in automotive USB hubs or controllers with limited USB I/Os. The wide bandwidth (900 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps).
- Features
- • Qualified for Automotive Applications
- • AEC-Q100 Qualified With the Following Results:
- – Device Temperature Grade 1: –40°C to 125°C
- Ambient Operating Temperature Range
- – Device HBM ESD Classification Level H2
- – Device CDM ESD Classification Level C5
- • VCC Operation at 2.5 V to 3.3 V
- • VI/O Accepts Signals Up to 5.5 V
- • 1.8-V Compatible Control-Pin Inputs
- • Low-Power Mode When OE Is Disabled (1 µA)
- • rON = 16 Ω Maximum
- • ΔrON = 0.2 Ω Typical
- • Cio(on) = 6 pF Typical
- • Low Power Consumption (30 µA Maximum)
- • High Bandwidth (900 MHz Typical)
- • ESD Performance Tested Per JESD 22
- – 7000-V Human-Body Model (A114-B, Class II)
- – 1000-V Charged-Device Model (C101)
- • ESD Performance I/O to GND Per JESD 22
- – 12-kV Human-Body Model
- Applications
- • Routing High Speed USB Signals
- • Automotive USB Hubs
- • Phone-Controlled Automotive Infotainment
TS3USB221AQRSERQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | UQFN-10 |
| Number of Outputs | 2 Output |
| Supply Current | 30 µA |
| Number of Channels | 2 Channel |
| Number of Positions | 10 Position |
| Bandwidth | 900 MHz |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 900 MHz |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.3 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
