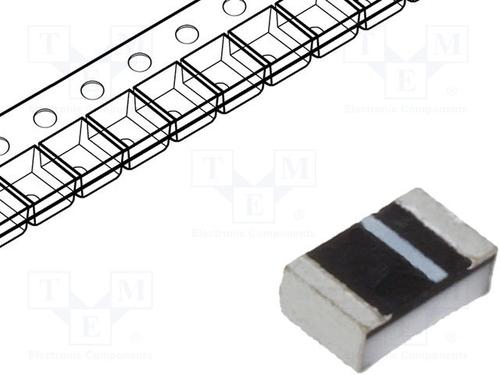

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

150mA, 75V switching diode featuring low power loss and high efficiency. It is ideal for automated placement.
High surge current capability

Show

TS4148 RYG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Number of Positions	2 Position
Forward Voltage	1 V
Reverse recovery time	4 ns
Forward Current	150 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	150 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
