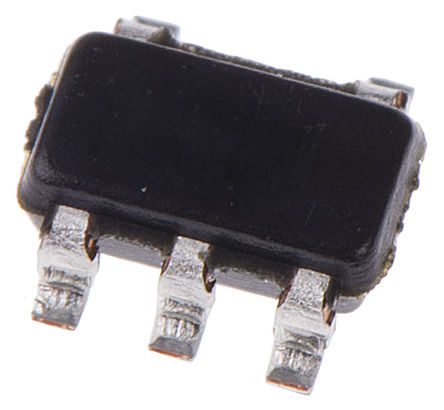

Image is for your reference only,please check specifications for details

TS461CLT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9832459
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TS461CLT Operational Amplifier, Single, 1 Amplifier, 10MHz, 4V/µs, 2.7V to 10V, SOT-23, 5Pins
Stock Locations:
Availability:
9,018 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.88

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TS46x are a family of operational amplifiers able to operate with voltages as low as ±1.35V
and to reach a minimum of ±2Vppof output swing when supplied with ±2.5V.
This device is well-suited for all kinds of portable and battery-supplied equipment, where low noise
and low distortion are key requirements.
The TS461/2/4 offer excellent output rail-to-rail performance at an attractive cost.
■ High dynamic features
■ Large output swing (±2.4V @ VCC= ±2.5V)
■ Low noise level: 4nV/√Hz
■ Low distortion: 0.003%
■ Operating range: 2.7V to 10V
■ Available in SOT23-5 micropackage
Applications
■ Sound cards
■ PDA
■ CD players
■ Recording equipment
■ Multimedia
■ Microphone preamplifiers

Show

TS461CLT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	2.50 V
Supply Current	2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	60 dB
Bandwidth	10 MHz
Slew Rate	4.00 V/μs
Gain Bandwidth Product	12 MHz
Input Offset Voltage	1 mV
Input Bias Current	200 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Gain Bandwidth	12 MHz
Minimum CMRR Range	60 dB
Supply Voltage	2.7V ~ 10V
Supply Voltage (Max)	10 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
