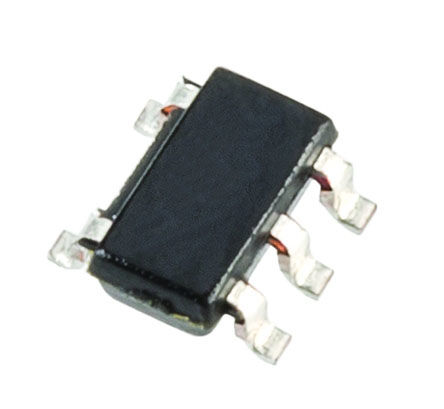

Image is for your reference only,please check specifications for details

TS507ILT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC30946724
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TS507ILT Operational Amplifier, Single, 1 Amplifier, 1.9MHz, 0.6V/µs, 2.7V to 5.5V, SOT-23, 5Pins
Stock Locations:
Availability:
205 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The TS507 is a high performance rail-to-rail input and output amplifier with very low offset voltage. This amplifier uses a new trimming technique that yields ultra low offset voltages without any need for external zeroing.
The circuit offers very stable electrical characteristics over the entire supply voltage range, and is particularly intended for automotive and industrial applications.
Features
■ Ultra low offset voltage: 25 µV typ, 100 µV max
■ Rail-to-rail input/output voltage swing
■ Operating from 2.7 V to 5.5 V
■ High speed: 1.9 MHz
■ 45° phase margin with 100 pF
■ Low consumption: 0.8 mA at 2.7 V
■ Very large signal voltage gain: 131 dB
■ High power supply rejection ratio: 105 dB
■ Very high ESD protection 5kV (HBM)
■ Latch-up immunity
■ Available in SOT23-5 micropackage
Applications
■ Battery-powered applications
■ Portable devices
■ Signal conditioning
■ Medical instrumentation

Show

TS507ILT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Output Current	128 mA
Supply Current	850 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Common Mode Rejection Ratio	94 dB
Bandwidth	1.9 MHz
Slew Rate	600 mV/μs
Gain Bandwidth Product	1.9 MHz
Input Offset Voltage	25 µV
Input Bias Current	8 nA
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1.9 MHz
Minimum CMRR Range	94 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
