TSM2307CX - Taiwan Semiconductor
Manufacturer:
Taiwan Semiconductor
ManyChip's Part#:
MC11525146
Category:
MOSFET, MOSFET Transistor
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:

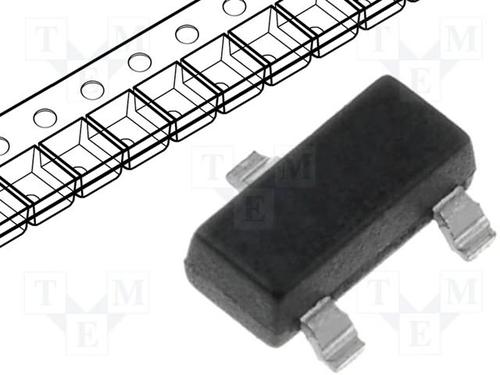

TAIWAN SEMICONDUCTOR TSM2307CX MOSFET Transistor, P Channel, -3A, -30V, 0.064Ω, -10V, -1V
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 20/02/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSM2307CX is a P-channel MOSFET offers -30V drain source voltage and -3A continuous drain current. It is suitable for use in load and PA switch applications.
Advance Trench process technology
High density cell design for ultra-low ON-resistance

Show

TSM2307CX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.064 Ω
Polarity	P-Channel
Power Dissipation	1.25 W
Threshold Voltage	1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Operating Temperature	-55℃ ~ 150℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
