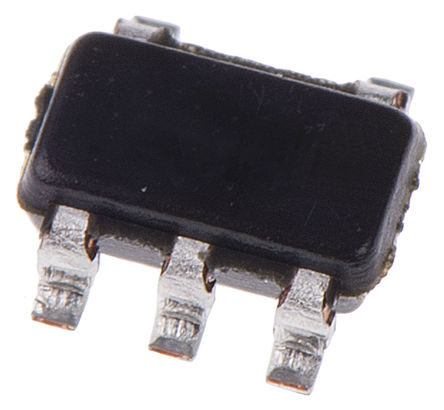

TSX561ILT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC16056000
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TSX561ILT Operational Amplifier, Single, 1 Amplifier, 850kHz, 1.1V/µs, 3V to 16V, SOT-23, 5Pins
Stock Locations:
Availability:
1,033 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.05

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSX56x, TSX56xA series of operational amplifiers benefit from STMicroelectronics® 16 V CMOS technology to offer state-of-the-art accuracy and performance in the smallest industrial packages. The TSX56x, TSX56xA have pinouts compatible with industrial standards and offer an outstanding speed/power consumption ratio, 900 kHz gain bandwidth product while consuming only 250 µA at 16 V. Such features make the TSX56x, TSX56xA ideal for sensor interfaces and industrial signal conditioning. The wide temperature range and high ESD tolerance ease use in harsh automotive applications.
**Key Features**
Low power consumption: 235 µA typ. at 5 V
Supply voltage: 3 V to 16 V
Gain bandwidth product: 900 kHz typ.
Low offset voltage
“A” version: 600 µV max.
Standard version: 1 mV max.
Low input bias current: 1 pA typ.
High tolerance to ESD: 4 kV
Wide temperature range: -40 to 125 °C
Automotive qualification
Tiny packages available: SOT23-5, DFN8 2 mm x 2 mm, MiniSO8, QFN16 3 mm x 3 mm, and TSSOP14

Show

TSX561ILT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Output Current	90 mA
Supply Current	250 µA
Number of Circuits	1 Circuit
Number of Positions	5 Position
Common Mode Rejection Ratio	95 dB
Bandwidth	850 kHz
Slew Rate	1.10 V/μs
Gain Bandwidth Product	900 kHz
Input Offset Voltage	1 mV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.85 MHz
Minimum CMRR Range	50 dB
Supply Voltage	3V ~ 16V
	Show
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
