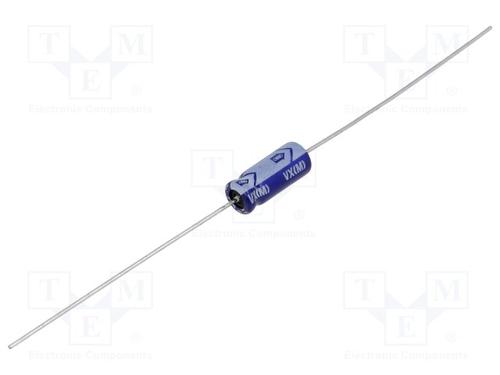

Image is for your reference only,please check specifications for details

TVX1E100MAD - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC40721503
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Axial, Can
Datasheet:
Datasheet 3D Model
Description:
Cap Aluminum Lytic 10uF 25V 20% Axial 2000H 85℃
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TVX1E100MAD is a standard aluminium Electrolytic Capacitor with axial leaded termination and suitable for general purposes. Printed with white colour letter on purple blue sleeve marking.
Anti-solvent (through 100V only)

Show

TVX1E100MAD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial, Can
Voltage Rating (DC)	25.0 V
Operating Voltage	25 VDC
Capacitance	10 µF
Capacitance Tolerance	±20 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	25 V
	Show
Size-Height	12 mm
Size-Diameter	5.00 mm
Lead Length	35.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
Life (Hours)	2000h @85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
