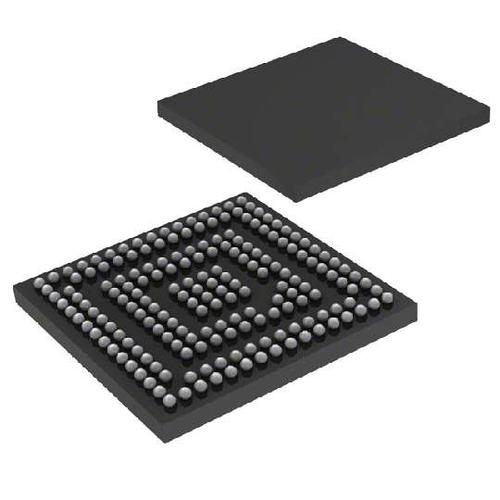

Image is for your reference only,please check specifications for details

TWL6030B107CMR - TI
Manufacturer:
TI
ManyChip's Part#:
MC66136703
Category:
Power Management IC
Package:
FCBGA-187
Datasheet:
Datasheet 3D Model
Description:
Fully Integrated Power Management IC (PMIC) with Switch Mode Charger 187-FCBGA -40℃ to 85℃
Stock Locations:
Availability:
322 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.85

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TWL6030 device is an integrated power-management integrated circuit (IC) for applications powered by a rechargeable battery. The device provides seven configurable step-down converters with up to 2.0-A capability for memory, processor core, I/O, auxiliary, preregulation for LDOs, and so forth. The device also contains 11 LDO regulators that can be supplied from a battery or a preregulated supply. The power-up and power-down controller is configurable and can support any power-up and power-down sequences (programmed in OTP memory). The real-time clock (RTC) provides a 32-kHz output buffer, second, minute, hour, day, month, year information, and alarm wake up. The TWL6030 device supports 32-kHz clock generation based on a crystal oscillator. The device integrates a switched-mode charger allowing faster battery charge, higher efficiency, and less power dissipation.
The TWL6030 device generates power supplies for OMAP™ 4 processors and operates together with the TWL6040 device, which includes all audio and related detection features. For audio IC parameters, see the TWL6040 data sheet. The TWL6030 device is available in an nFBGA package, 7.0 mm x 7.0 mm, with a 0.4-mm ball pitch.

Show

TWL6030B107CMR Specifications
