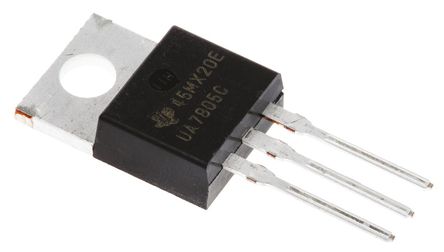

Image is for your reference only,please check specifications for details

UA7805CKCS - TI
Manufacturer:
TI
ManyChip's Part#:
MC2649107
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Standard Voltage Regulator 3Pin 1.5A Fixed 5V Positive Voltage Regulator LDO Regulator Pos 5V 1.5A 3Pin(3+Tab) TO-220 Tube
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA7805CKCS is a fixed voltage regulator capable of delivering up to 1.5A of output current. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. This device can also be used with external components to obtain adjustable voltage and currents.
Output current up to 1.5A
Internal Thermal-Overload Protection
High Power-Dissipation Capability
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation

Show

UA7805CKCS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	25.0 V
Number of Outputs	1 Output
Input Voltage (DC)	25.0V (max)
Output Voltage	5 V
Output Current	1.5 A
Number of Positions	3 Position
Quiescent Current	4.30 mA
Output Capacitor Type	Capacitor Free
voltage rating	2V @1A
Number of Regulated Outputs	1 Output
Input Voltage (Max)	25 V
Input Voltage (Min)	7 V
Output Voltage (Min)	5 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	7V ~ 25V
	Show
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.7 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
