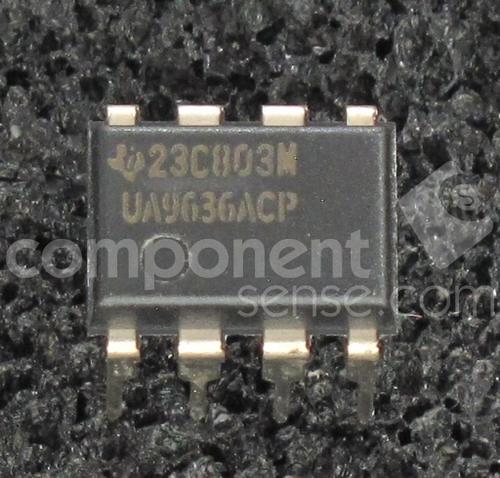

UA9636ACP - TI
Manufacturer:
TI
ManyChip's Part#:
MC13537444
Category:
Interface IC, Interface Controller
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UA9636ACP RS232 / RS423 Driver IC, 2 Drivers, TTL & CMOS, 10.8V to 13.2V, DIP-8
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**description**
The uA9636AC is a dual, single-ended line driver designed to meet ANSI Standards EIA/TIA-423-B and EIA/TIA-232-E and ITU Recommendations V.10 and V.28. The slew rates of both amplifiers are controlled by a single external resistor, R(WS), connected between the wave-shape-control (W-S) terminal and GND. Output current limiting is provided. Inputs are compatible with TTL and CMOS and are diode protected against negative transients. This device operates from ±12 V and is supplied in an 8-pin package. The uA9636AC is characterized for operation from 0°C to 70°C.
**Meets or Exceeds the Requirements of ****ANSI Standards EIA/TIA-423-B and -232-E ****and ITU Recommendations V.10 and V.28**
**Output Slew Rate Control**
**Output Short-Circuit-Current Limiting**
**Wide Supply Voltage Range**
**8-Pin Package**
**Designed to Be Interchangeable With ****National DS9636A**

Show

UA9636ACP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	-12.0 V, 12.0 V (max)
Supply Current	18 mA
Number of Channels	2 Channel
Data Rate	7.00 kbps
Drivers Per Package	2
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	10.8V ~ 13.2V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	10.8 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
