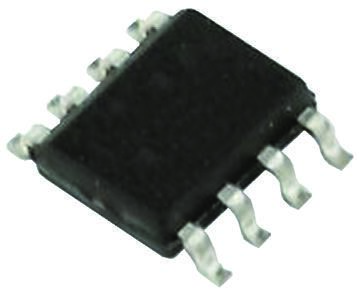

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Easily modulate voltage levels to meet your project"s specifications using the STMicroelectronics UC2845BD1 current controller. This current mode controller supports boost|flyback topology. Its single PWM output produces a current of 1000(Max) mA. This part offers a switching frequency of 500 kHz in order to work properly. This current mode controller has a minimum operating temperature of -25 °C and a maximum of 85 °C. This current mode controller"s maximum duty cycle is 50 %. This device has a maximum of 30 V.

Show

UC2845BD1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	250 kHz
Input Voltage (DC)	15.0 V
Output Voltage	5.05 V
Output Current	200 mA
Number of Positions	8 Position
Power Dissipation	1250 mW
Rise Time	50 ns
Switching Frequency	500 kHz
Maximum Duty Cycle	50 %
Fall Time	50 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1250 mW
Supply Voltage (Max)	25 V
Supply Voltage (Min)	12 V
Input Voltage	15 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.25 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
