DESCRIPTION
The UC1825 family of PWM control ICs is optimized for high fre quency switched mode power supply applications. Particular care was given to minimizing propagation delays through the comparators and logic circuitry while maximizing bandwidth and slew rate of the error amplifier. This controller is designed for use in either current-mode or voltage mode systems with the capability for input voltage feed-forward.

Show

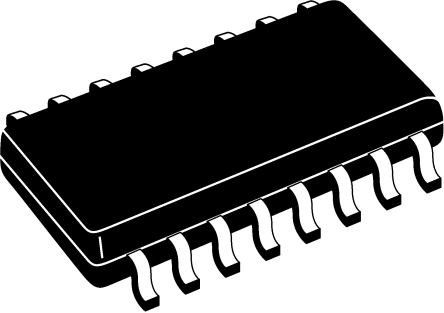

UC3825DW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	1 MHz
Supply Voltage (DC)	10.0V (min)
Number of Outputs	2 Output
Input Voltage (DC)	30.0 V
Output Voltage	13 V
Output Current	1.5 A
Supply Current	33 mA
Number of Positions	16 Position
Power Dissipation	1 W
Number of Regulated Outputs	2 Output
Rise Time	30 ns
Switching Frequency	1000 kHz
Topology	Buck, Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Duty Cycle	85 %
Maximum Duty Cycle	85 %
Fall Time	30 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage (Max)	30 V
Supply Voltage (Min)	10 V
	Show
Size-Length	10.28 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
