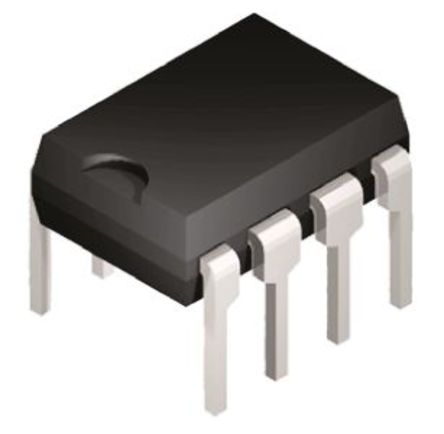

Image is for your reference only,please check specifications for details

UC3845BVNG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC25434361
Category:
DC to DC Converter
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
UC3845BVNG, PWM Current Mode Controller, 1A, 250kHz, 36V, 8Pin PDIP
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

High Performance Current Mode Controllers
The UC3844B, UC3845B series are high performance fixed frequency current mode controllers. They are specifically designed for Off−Line and dc−dc converter applications offering the designer a cost−effective solution with minimal external components. These integrated circuits feature an oscillator, a temperaturecompensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET.
Features
•Trimmed Oscillator for Precise Frequency Control
•Oscillator Frequency Guaranteed at 250 kHz
•Current Mode Operation to 500 kHz Output Switching Frequency
•Output Deadtime Adjustable from 50% to 70%
•Automatic Feed Forward Compensation
•Latching PWM for Cycle−By−Cycle Current Limiting
•Internally Trimmed Reference with Undervoltage Lockout
•High Current Totem Pole Output
•Undervoltage Lockout with Hysteresis
•Low Startup and Operating Current
•These Devices are Pb−Free and are RoHS Compliant
•NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable

Show

UC3845BVNG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	52 kHz
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	30.0 V
Output Voltage	5.1 V
Output Current	1 A
Supply Current	12 mA
Number of Positions	8 Position
Power Dissipation	1.25 W
Rise Time	50 ns
Switching Frequency	500 kHz
Topology	Flyback, Forward, Step-Up, Step-Down
Duty Cycle	50 %
Maximum Duty Cycle	48 %
Fall Time	50 ns
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1250 mW
Supply Voltage	7.6V ~ 30V
Supply Voltage (Max)	25 V
	Show
Size-Length	10.02 mm
Size-Width	7.11 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
